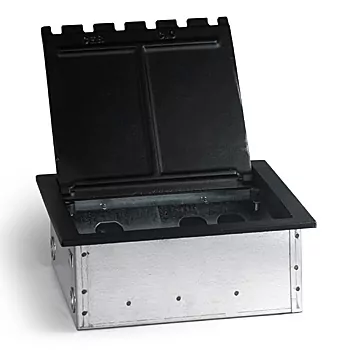

THE RF10C SERIES BOX is a large capacity dual service floor box for use in a raised floor. The box is constructed of 16 ga. galvanized steel and comes complete with 1/4″ cast aluminum cover assembly (does not include 4 adjustable legs). Box supplied wi



Type: Product
Category: Access Floorboxes, Commercial

  • Share this product:
  •
  •
  • Product Description

    THE RF10C SERIES BOX is a large capacity dual service floor box for use in a raised floor. The box is constructed of 16 ga. galvanized steel and comes complete with 1/4″ cast aluminum cover assembly (does not include 4 adjustable legs). Box supplied with two 1/2 – 3/4″ combination conduit knockouts each end for conduit feed. Standard boxes supplied with power plates and data/communication plates punched to accept specified RF10C devices.

    Additional Images

    Specifications

    Power Device Plate Specifications
    Receptacles are not normally supplied with boxes, contact factory for pricing with details of any receptacles that are required to be supplied with boxes.
    1 = 1 std duplex cut out
    5 = 3 std duplex cut outs
    2 = 2 std duplex cut outs
    6 = 4 std duplex cut outs
    3 = 1 “Decora” cut out
    7 = 3 “Decora” cut outs
    4 = 2 “Decora” cut outs8 = 4 “Decora” cut outs
    Note: Decora cut outs measure 1.3125″ x 2.66″

    Tel/Data Device Plate Specifications
    Receptacles are not normally supplied with boxes, contact factory for pricing with details of any receptacles that are required to be supplied with boxes.
    A = 1 “Decora” cut out
    E = 3 “keystone” cut out
    J = 7 “keystone” cut outs
    B = 2 “Decora” cut outs
    F = 4 “keystone” cut outs
    K = 8 “keystone” cut outs
    C = 1 “keystone” cut out
    G = 5 “keystone” cut outsM = 3 “Decora” cut outs
    D = 2 “keystone” cut outsH = 6 “keystone” cut outsP = 4 “Decora” cut outs
    Note: Decora cut outs measure 1.3125″ x 2.66″; keystone cut outs measure .765″ x .585″
    Standard Ordering Specifications
    1. Specify box type [CF10C]
    2. Specify power device plate [e.g. CF10C6 = 4 std duplex cut outs.]
    3. Specify Tel/Data device plates [e.g. CF10C6BD = 4 std duplex cut outs for power, 2 Decora & 2 keystones for Tel/Data.]

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download
