532-SB-58
SOLD ONLINE ONLY, CLICK “BUY HERE”
Shallow, Cast Box, Fully Adjustable
Product Description
SOLD ONLINE ONLY
Shallow, Cast Box, Fully Adjustable

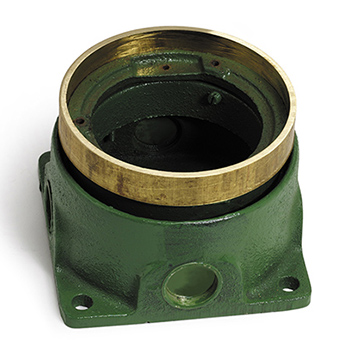

The Lew Electric 532-SB-58 is a round cast iron concrete floor box with a brass top. The box is fully adjustable and offers 3/8″ of adjustability after it is installed via 3 screws with just a screwdriver. The box is shallow offering 3.33″ of height for installation, and 14.1 cubic inches of interior space. There are four 3/4″ knockouts on the sides of the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. The box is UL listed for the USA, and cUL listed for Canada installations.
Top: Brass
Requires cover, sold separately
Size: Single gang
For concrete installations
Offers 3/8″ of adjustability post installation
14.1 cubic inches of interior space
Four 3/4″ knockouts
UL and cUL listed, # 514A, 489H
Includes construction cap
Box dimensions: 4.25″ round
Depth: 3.33″ deep
Can be used with carpet or tile
Warranty: 1 year
Additional Images
Specifications
- Dim A: 4 1/4″ / Dim B: 3 5/16” / Adjust before: X
- Adjust after: 3/8″ / Interior Capacity: 14.1 cu.in.
- Conduit Openings: Sides (4) 3/4″
- Top: Brass
- Requires cover, sold separately
- Size: Single gang
- For concrete installations
- Offers 3/8″ of adjustability post installation
- 14.1 cubic inches of interior space
- Four 3/4″ knockouts
- UL and cUL listed, # 514A, 489H
- Includes construction cap
- Box dimensions: 4.25″ round
- Depth: 3.33″ deep
- Can be used with carpet or tile
- Warranty: 1 year
