pointpod – Black

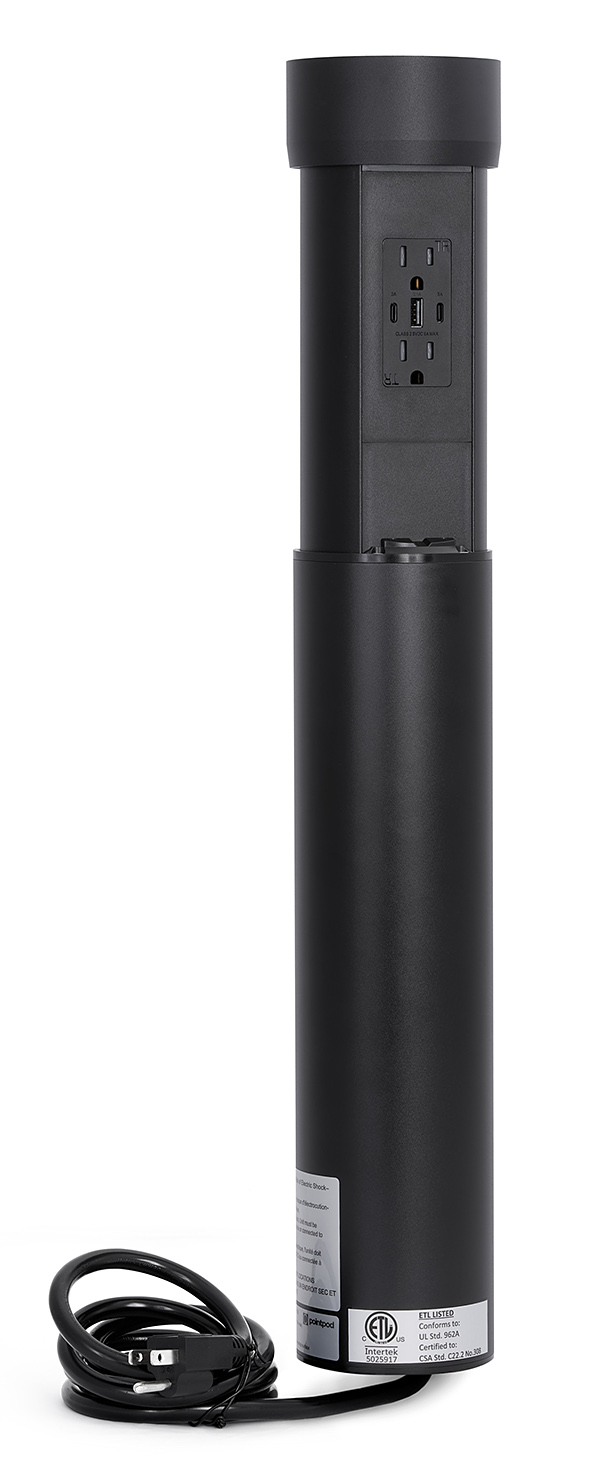

P/N: PPCV815B, Automated Kitchen Countertop Pop Up With 15A (TR) Duplex Power/3USB (AC) Black Receptacle and Black Bezel
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.
Product Description
Automated Kitchen Countertop Pop Up With 15A (TR) Duplex Power/3USB (AC) Black Receptacle and Black Bezel
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms. FOR 2014 NEC CODE AND BELOW.
Key Features: Eliminates dangerous cords hanging from kitchen counters. Includes 125V-15A (TR) Duplex Power/3USB (AC) Receptacle. USB Ports are 1 Type A and 2 Type C. Solves the need to have power where a wall outlet is not possible in kitchen. Fully integrates into kitchen design by adding the actual countertop material into the pointpod lid. Gently pressing the lid raises up for use, or hides it away in the countertop.
CAD / Shop Drawings:
• Full Exterior Assembly
• Components
• Top Cup
• Position Sleeve
• Undermount Flange
Additional Images
Specifications
-
- 15A Duplex Power/3USB (Type A and Type C) Receptacle
- USB Ports are 1 Type A (Class 2.5 2.4A) AND 2 Type C (Class 2.5 3A)
- Black top with opening to add actual countertop material
- IP44 Splash proof rated
- Tamper resistant outlets
- Corded Power (6 foot cord)
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Cutout dimension: 4″. ***It is recommended to have the product in hand before cutting**
- Space Needed Below Counter: 18 (in) depth, 6 and 5/16 (in) in diameter at mounting flange, 4 (in) for body
- Counter thickness: 1/2″ to 2″
- FOR 2014 NEC CODE AND BELOW
ETL Listed, UL 962A & CSA C22.2
US Patent # 10 777 985 B2
IP rating – IP44
Drawings and Resources
| Adobe PDF: Download Download Download Download Download |
| AutoCAD DWG: |
| Install Instructions: Download |
Certifications and Compliances
pointpod Safety and Certifications:
- For indoor use only
- ETL listed for USA installations, #5025917
- cETL listed for Canada installation, #5025917
- CSA approved for Canada, #C22.2
- Conforms to UL standard 962A
- Certified to CSA STD.C22.2
- US Parent # 10 777 985 B2
- Water protection: IP44 Spill proof rated top
- 2 year warranty; click here for Warranty Claim
