Product Description

SOLD ONLINE ONLY

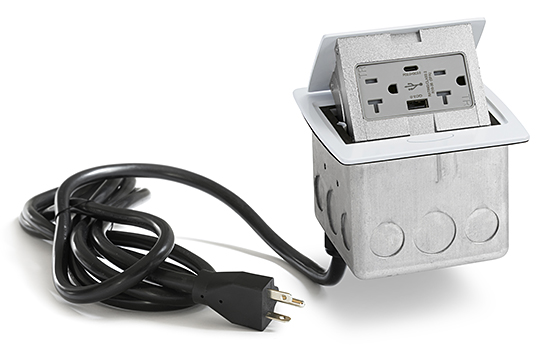

Kitchen Countertop Pop Up With 20A (TR) Duplex Power/2USB (AC) Receptacle, White, With 20A Power Cord

Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

Key Features: Eliminates dangerous cords hanging from kitchen counters. Includes 125V-20A (TR) Duplex Power/2USB (AC) Receptacle. USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0). Includes dust covers for USB ports. Solves the need to have power where a wall outlet is not possible in kitchen. Includes 9 foot 20A power cord.

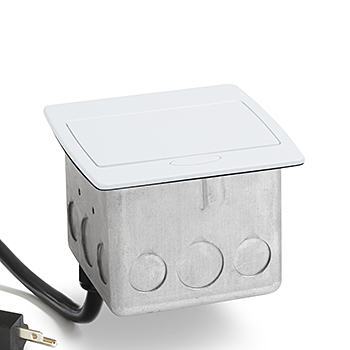

The Lew Electric PUFP-CT-WT-AC-WC countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. Includes 125V-20A (TR) Duplex Power/2USB (AC) Receptacle. USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0). Includes dust covers for USB ports.

Additional Images

Specifications

• 20A Duplex Power/2USB (Type A and Type C) Receptacle
• USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0)
• White metal top
• IP44 Splash proof rated
• Tamper resistant outlets
• Includes 9 foot 20A Power Cord
• Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
• Includes back box shown in picture
• Bezel dimensions: 4 11/16″ X 4 11/16″
• Cutout dimensions: 4 1/16″ x 4 1/16″,  ***It is recommended to have the product in hand before cutting***
• Space Needed Below Counter: 3.13″
• Counter thickness: 1/2″ to 2″
• Back box dimensions: 3 15/16″ x 4″

Conforms to UL standard 962A;
Certified to CSA STD.C22.2.; No. 308;
