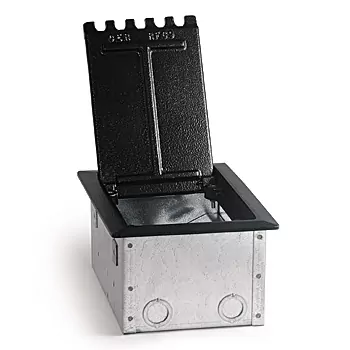

THE RF9C SERIES BOX is a dual service raised floor box. The box is constructed of 16 Ga. Galvanized steel and is supplied complete with 1/4″ cast aluminum cover assembly.



Type: Product
Category: Access Floor Boxes two, Commercial

  • Share this product:
  •
  •
  • Product Description

    THE RF9C SERIES BOX is a dual service raised floor box. The box is constructed of 16 Ga. Galvanized steel and is supplied complete with 1/4″ cast aluminum cover assembly. Box supplied with two 1/2 –3/4″ combination conduit knockouts at each end (does not include 4 adjustable legs). RF9 series access floor boxes are constructed with multiple compartments to suit application. Standard boxes supplied with power plates and data/communication plates punched to accept specified devices.

    Additional Images

    Specifications

    Power Device Plate Specifications

    Receptacles are not normally supplied with boxes, contact factory for pricing with details of any receptacles that are required to be supplied with boxes.

    1 = 1 std duplex cut out

    3 = 1 “Decora” cut out

    2 = 2 std duplex cut outs

    4 = 2 “Decora” cut outs

    Note: Decora cut outs measure 1.3125″ x 2.66″


    Tel/Data Device Plate Specifications

    Receptacles are not normally supplied with boxes, contact factory for pricing with details of any receptacles that are required to be supplied with boxes.

    A = 1 “Decora” cut out

    C = 1 “keystone” cut out

    E = 3 “keystone” cut outs

    B = 2 “Decora” cut outs

    D = 2 “keystone” cut outs

    F = 4 “keystone” cut outs

    Note: Decora cut outs measure 1.3125″ x 2.66″; keystone cut outs measure .765″ x .585″


    Standard Ordering Specifications

    1. Specify box type [CF9C]
    2. Specify power device plate [e.g. CF9C2 = 2 std duplex cut outs.]
    3. Specify Tel/Data device plates [e.g. CF9C2C = 2 std duplex cut outs for power, 1 keystone for Tel/Data.]

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download
