RTBUS-11
NEW! Kramer RTBUS-11 Round Conference Table Box
Round, Compact and easy to install. A single receptacle and multi data/comm. enclosure with pneumatic cover, Black or Silver.
Product Description
Kramer RTBUS-11 Round Conference Table Box
The Kramer RTBUS-11 is an attractive and compact round in-table enclosure available in two striking and durable sand blasted anodized aluminum colors, Black and Silver. The pneumatic cover pops up when depressed from the top and stays locked in the upright position until manually closed, locking it in the closed position. Under the cover are surface mounted power and data/comm connections to meet all AV needs. The RTBUS-11 comes standard with a single receptacle, one HDMI, one VGA, one 3.5 MM AUDIO and one CAT6 jack.
Installation is easy, requiring only a single round cut in the surface. No screws are necessary as brackets tighten from the bottom, holding the enclosure in place. Under the enclosure there is a six foot power cord and all data/com connectors have a female termination making connectivity simple and quick. The RTBUS-11 cover is 4.21″ round and the enclosure is 6.06″ deep. This unit will accommodate a surface depth of up to 3 inches.
Available color options:
Black or Silver
Configuration options:
RTBUS-11(B)
• Black: 1 Power, 1 HDMI, 1 VGA, 1 Audio, 1 Cat6
RTBUS-11(BC)
• Silver: 1 Power, 1 HDMI, 1 VGA, 1 Audio, 1 Cat6

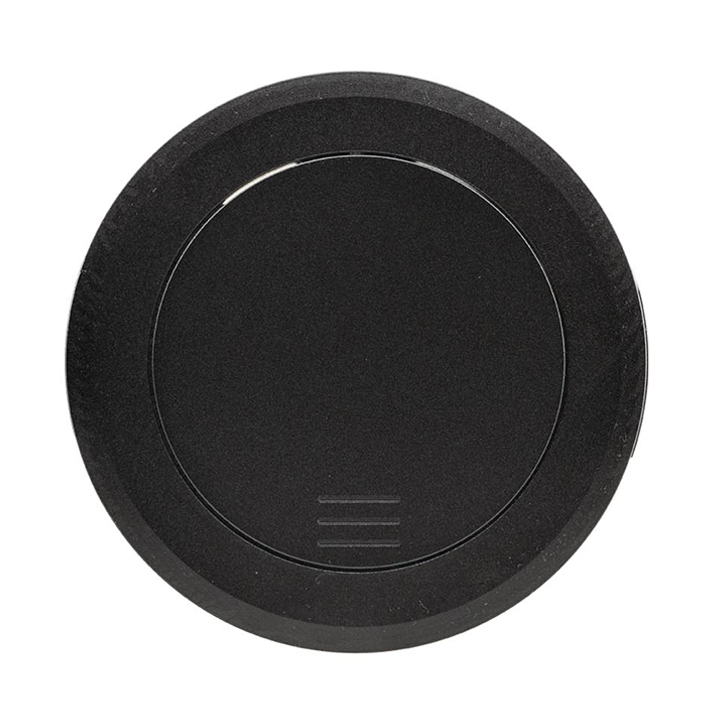

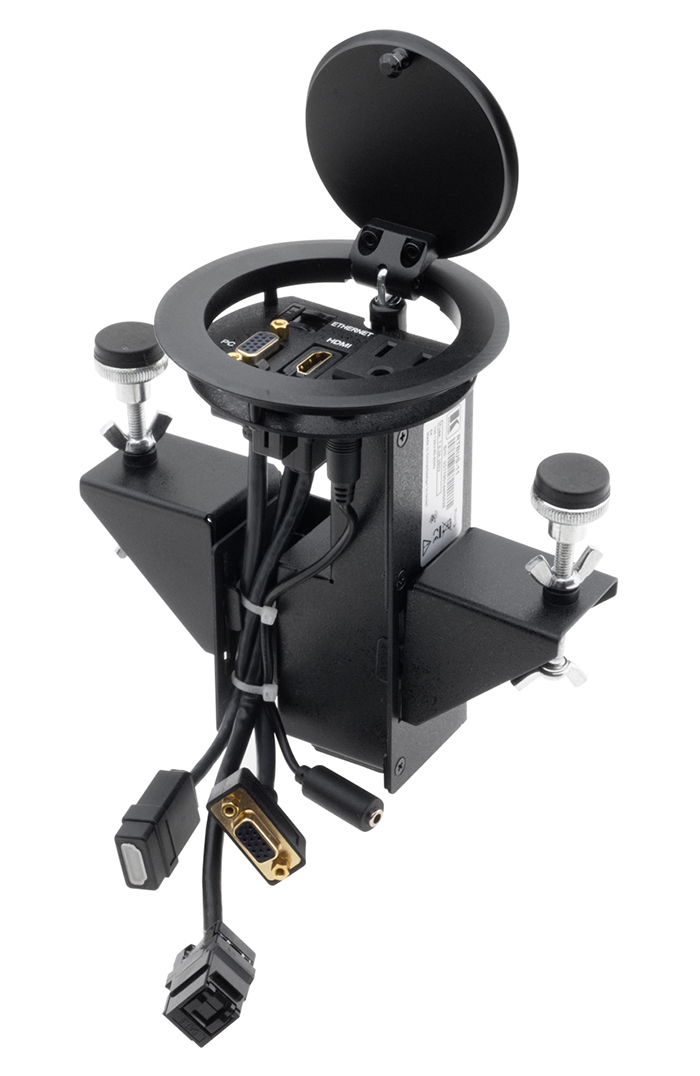

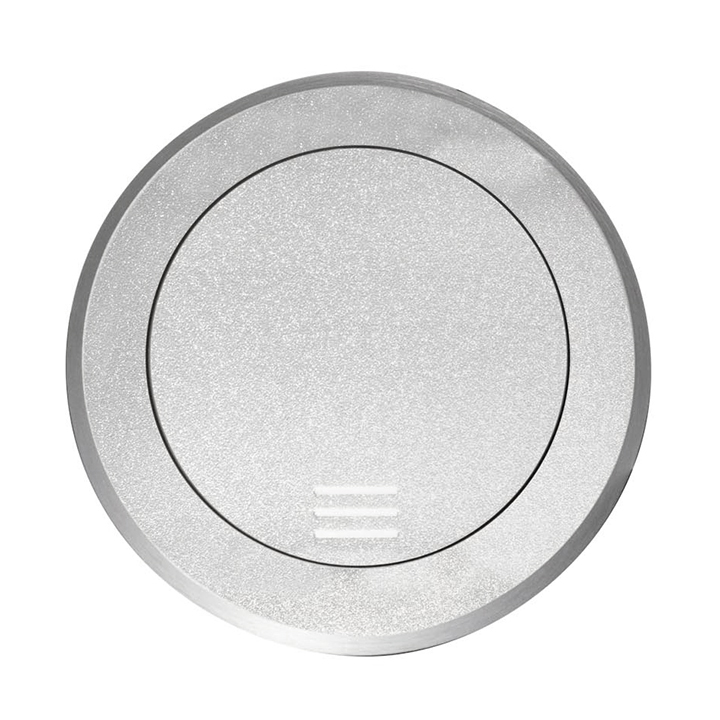

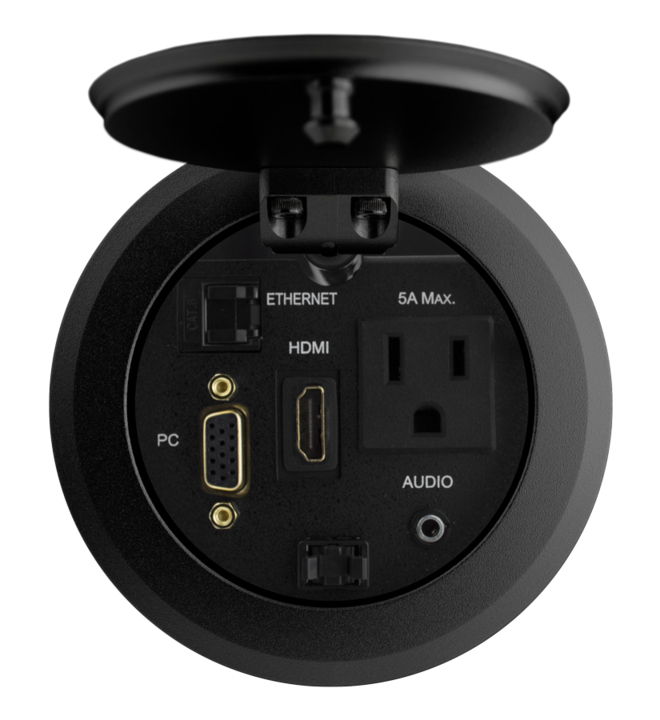

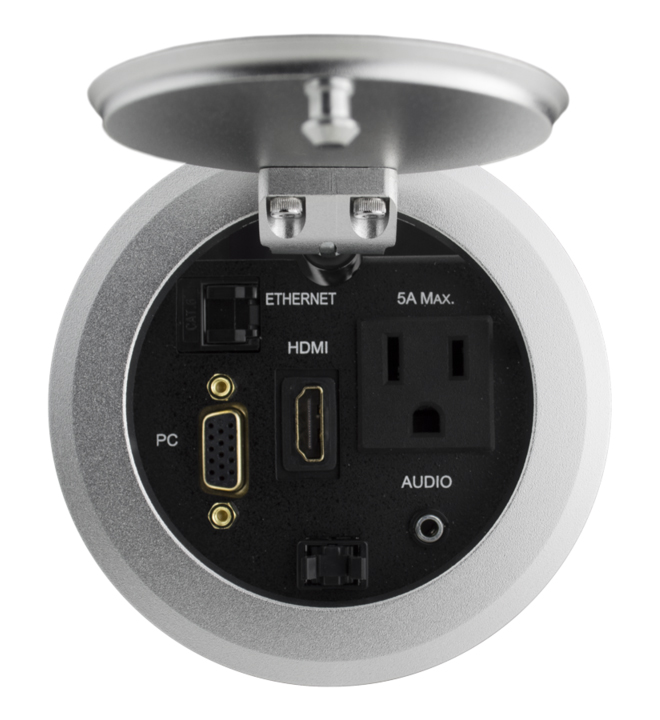

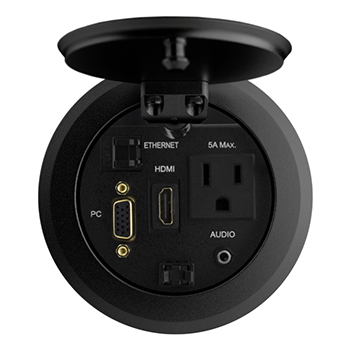

Additional Images
Specifications
- Color: Sand blasted anodized aluminum, Black or Silver
- Connections: 1 Power, 1 HDMI, 1 VGA, 1 audio, 1 Cat6 jack
- Female connections (underside) for quick installation
- Bezel size: 4.21″ round
- Depth: 6.06″
- Cutout size: 3.62″ round
- Works in tables up to 3″ thick
- Weight: 1.91 lbs
- Pneumatic pop up lid
- Includes: One 6-foot power cord with grounded plug
- All mounting hardware included
- Includes cutout template
- 7 year warranty
Drawings and Resources
| Adobe PDF: Download |
| AutoCAD DWG: |
| Install Instructions: |
cULus listed
