332-DA
Round, Shallow, Die Cast Aluminum, semi-adjustable concrete floor box with brass tile flange.
Product Description
Round, Shallow, Die Cast Aluminum, semi-adjustable concrete floor box with brass tile flange.

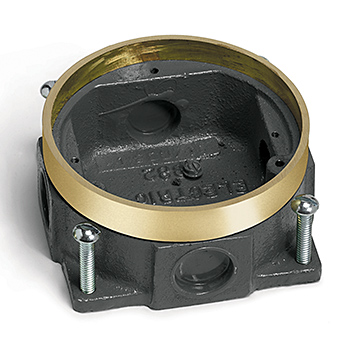

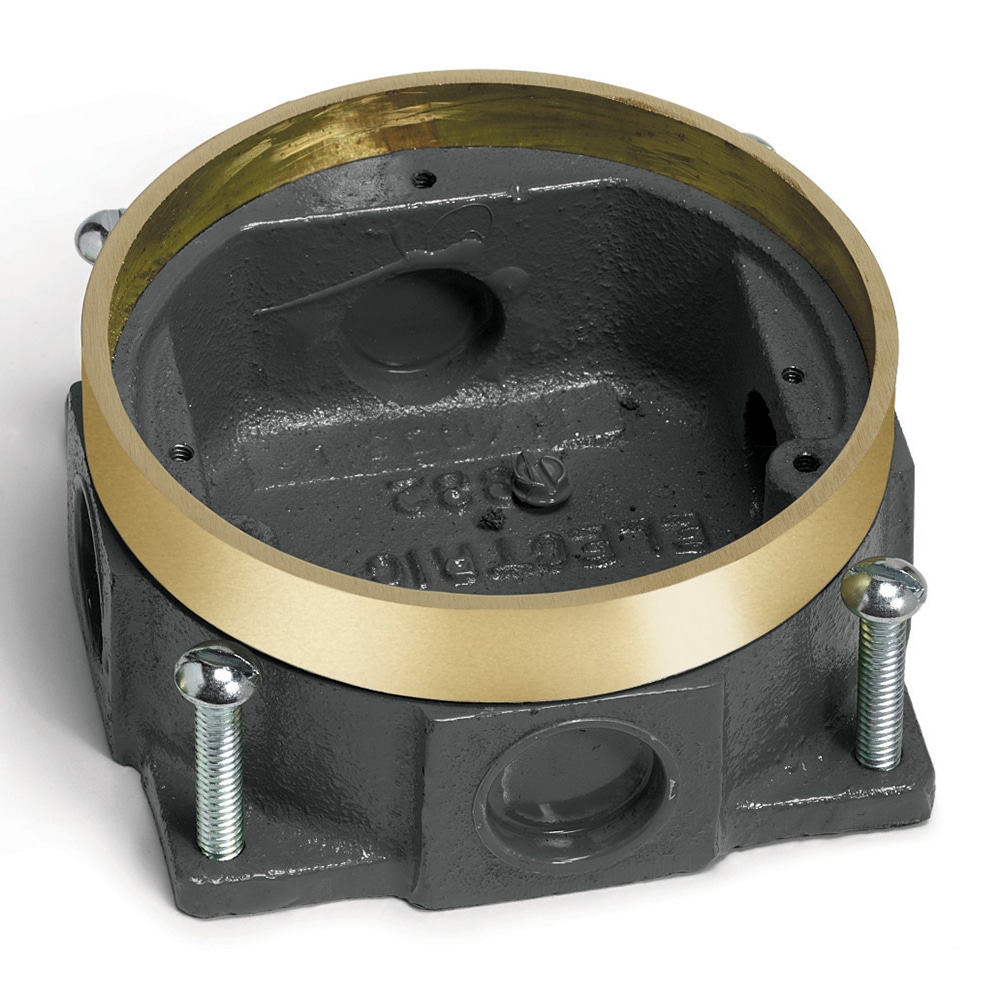

The Lew Electric 332-DA is a round, die cast aluminum concrete floor box with a brass tile flange. The semi-adjustable box offers 1″ of adjustability prior to installation. Post installation adjustability is not possible. The box is best suited for concrete pours between 2.5 and 3 inches. The 2 3/16“ deep box has 13 cubic inches of interior space available. There are four 3/4″ knockouts on the sides of the box and it ships with a protective concrete cover. For carpeted applications, use the SCF-1 brass flange along with a four inch brass cover. For tile applications no flange is needed. The box is ETL listed under UL standard 514A and CSA standard C22.2 #18.1.
Additional Images
Specifications
- Dim A: 4 1/4″ / Dim B: 2 3/16″ / Adjust before: 1″
- Adjust after: X / Interior Capacity: 13 cu.in.
- Conduit Openings: Sides (4) ¾”
- Tile Flange: Brass
- Requires cover, sold separately
- For concrete installations
- Offers 1″ of adjustability pre-installation
- Includes construction cap
- Can be used with carpet or tile
- Warranty: 1 year
Certifications and Compliances
- ETL listed under UL standard 514A and CSA standard C22.2 #18.1.
- ETL FILE NUMBER: 4004534
