532-DA-A
Round, Deep, Die Cast Aluminum, fully-adjustable concrete floor box with aluminum tile flange.
Product Description
Round, Deep, Die Cast Aluminum, fully-adjustable concrete floor box with aluminum tile flange.

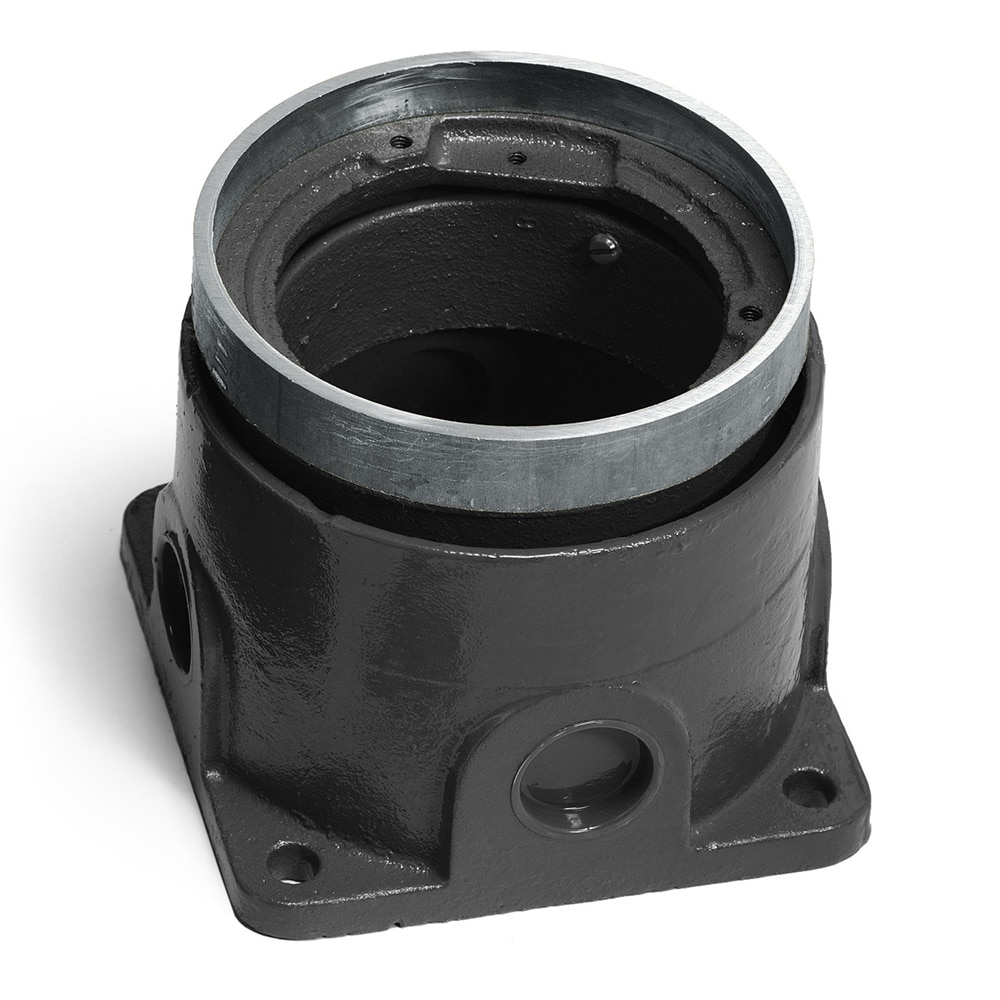

The Lew Electric 532-DA-A is a round, die cast aluminum concrete floor box with an aluminum tile flange. The fully-adjustable box offers 9/16″ of adjustability after installation. The box is best suited for concrete pours between 4 and 6 inches. The 4 3/32″ deep box has 32 cubic inches of interior space available. There are four 3/4″ knockouts on the sides of the box and it ships with a protective concrete cover. For carpeted applications, use the SCF-1-A brass flange along with a four inch brass cover. For tile applications no flange is needed.
Additional Images
Specifications
- Dim A: 4 1/4″ / Dim B: 4 3/32″ / Adjust before: X
- Adjust after: 9/16″ / Interior Capacity: 32 cu.in.
- Conduit Openings: Sides (4) 3/4″
- Tile Flange: Aluminum
- Requires cover, sold separately
- For concrete installations
- Includes construction cap
- Can be used with carpet or tile
- Warranty: 1 year
