PUFP-CT-BK-AC-PB
Kitchen Counter Pop Up Power Outlet Assembly With 20A (TR) Duplex Power/2USB (AC) Receptacle – Black.
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms.
Product Description
Kitchen Countertop Pop Up With 20A (TR) Duplex Power/2USB (AC) Receptacle, Black
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

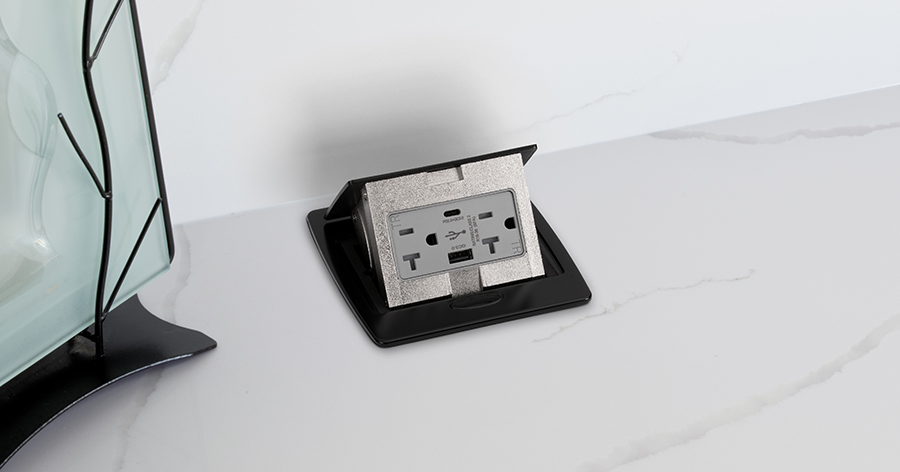

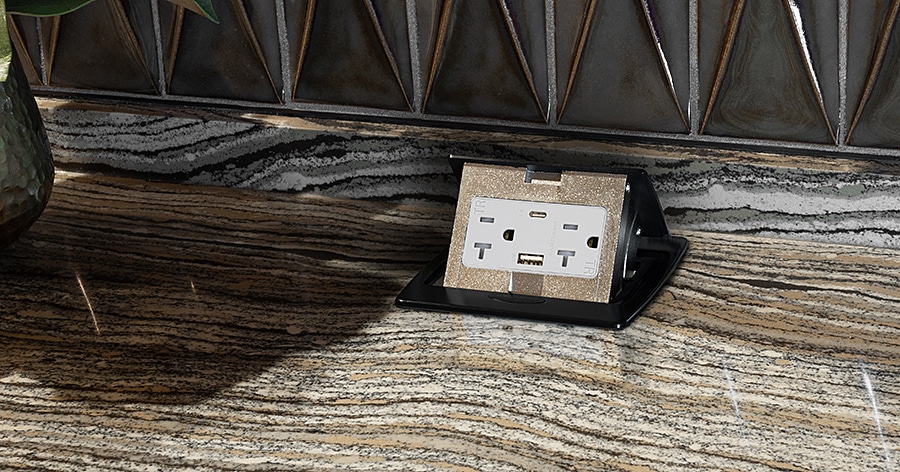

The Lew Electric PUFP-CT-BK-AC-PB countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. Includes 125V-20A (TR) Duplex Power/2USB (AC) Receptacle. The USB charging ports (1 Type A & 1 Type C) are 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)].
Specifications
- 20A Duplex Power/2USB (Type A and Type C) Receptacle
- USB charging ports: 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)]
- Black metal top
- IP44 Splash proof rated
- Tamper resistant outlets
- Hardwired power
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering

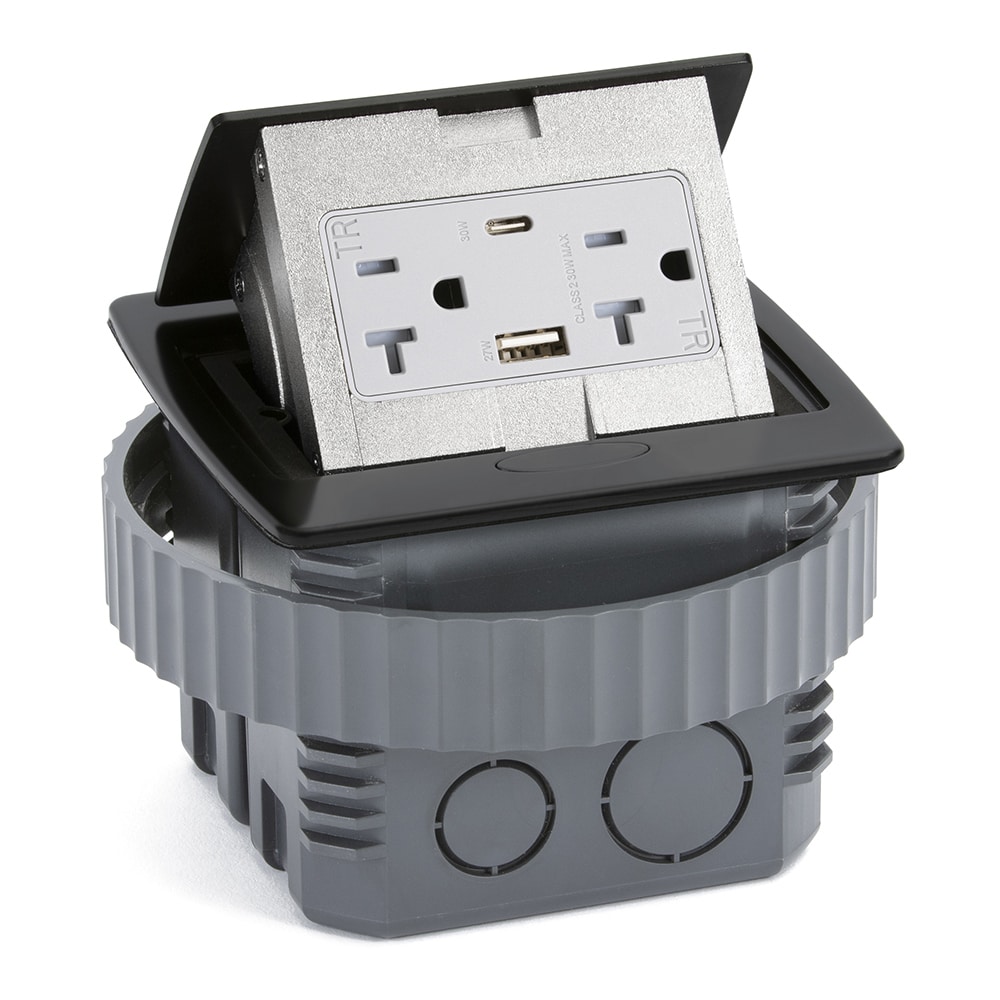

- Includes PUFP-CT-PB PLASTIC BOX shown in picture
- Bezel dimensions: 4 11/16″ X 4 11/16″
- Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
- Space Needed Below Counter: 3″ minimum
- Counter thickness: 1/2″ to 2″
- PUFP-CT-PB BOX dimensions: 4″W x 4″L x 3 1/8″H
Conforms to UL standard 498;
Certified to CSA STD.C22.2.; No. 42-10;
LEW ELECTRIC FITTINGS CO
Certifications and Compliances
PUFP Series Safety and Certifications:
- ETL Certification Sheet – PDF
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL standard 498
- Certified to CSA STD.C22.2.; No. 42-10
- UL listed receptacle: E491706
- Water protection: IP44 Spill proof rated top
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 1 year warranty
