Product Description

Kitchen Countertop Pop Up With 20A (TR) Duplex Power/2USB (AC) Receptacle, White

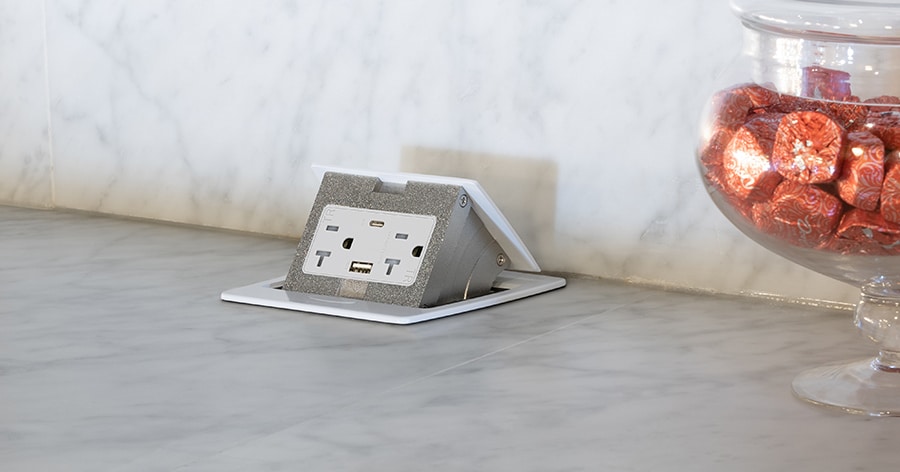

Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

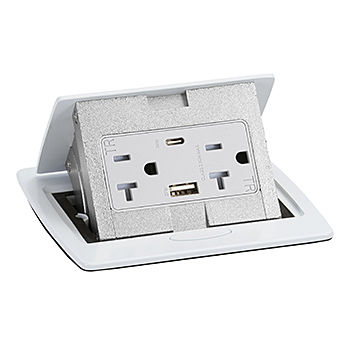

The Lew Electric PUFP-CT-WT-AC-PB countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. Includes 125V-20A (TR) Duplex Power/2USB (AC) Receptacle. The USB charging ports (1 Type A & 1 Type C) are 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)].

Additional Images

Specifications

• 20A Duplex Power/2USB (Type A and Type C) Receptacle
• USB charging ports: 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)]
• White metal top
• IP44 Splash proof rated
• Tamper resistant outlets
• Hardwired power
• Waterproof gasket under bezel  *Consult with electrician and inspector before ordering

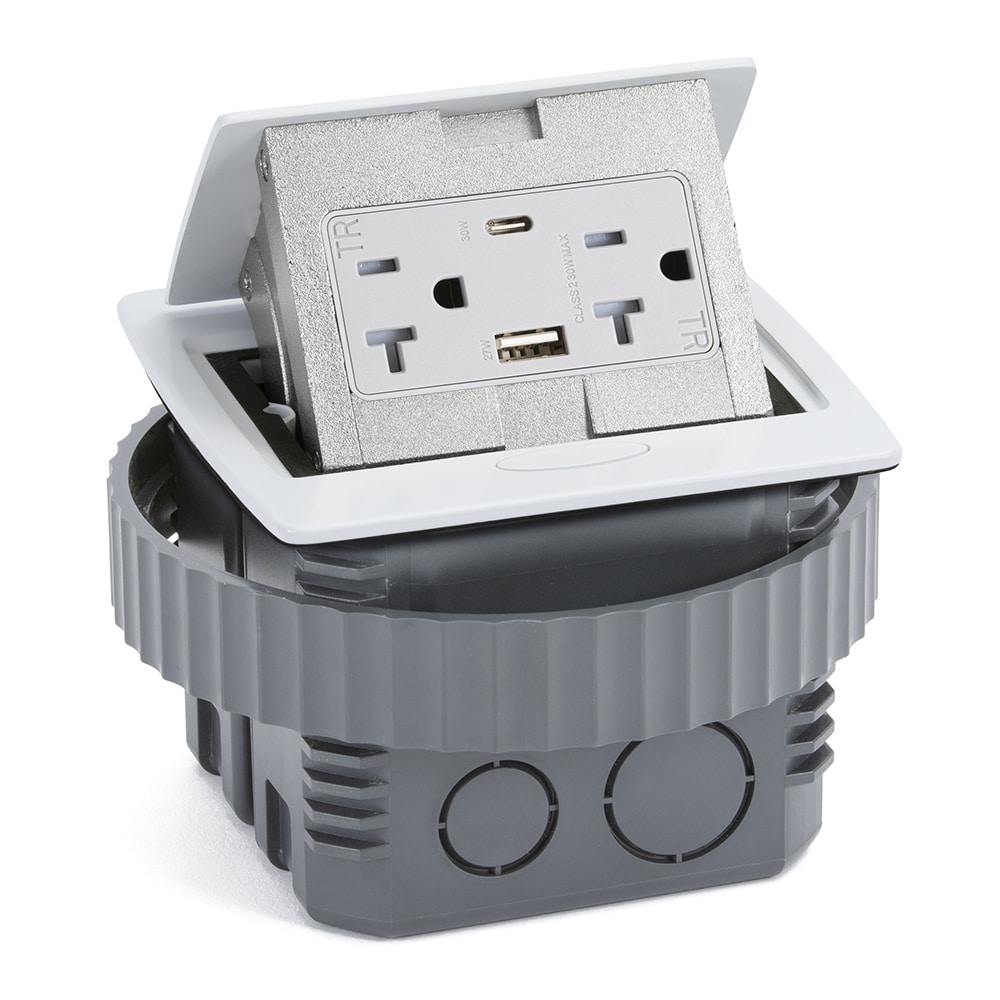

• Includes PUFP-CT-PB PLASTIC BOX shown in picture
• Bezel dimensions: 4 11/16″ X 4 11/16″
• Cutout dimensions: 4 1/8″ x 4 1/8″,  ***It is recommended to have the product in hand before cutting***
• Space Needed Below Counter: 3″ minimum
• Counter thickness: 1/2″ to 2″
• PUFP-CT-PB BOX dimensions: 4″W x 4″L x 3 1/8″H

Conforms to UL standard 498;
Certified to CSA STD.C22.2.; No. 42-10;
LEW ELECTRIC FITTINGS CO

Drawings and Resources

Certifications and Compliances
