Product Description

Under Cabinet Kitchen Pop Down Receptacle With 20A (TR) GFI Receptacle & 2 USB charging Ports (Type A&C), Stainless

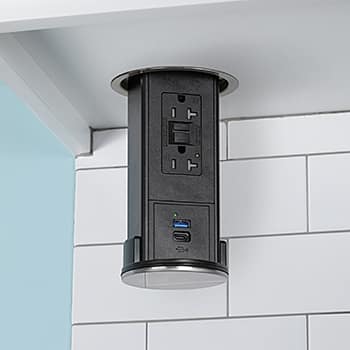

The Lew Electric UCPDR20GACD-SS under cabinet pop down power assembly is designed to be hidden inside a cabinet where it is not possible or convenient to have a wall outlet. When in the closed position the components are hidden inside the cabinet.

When power is needed, simply press down on the spring-loaded top and the cylindrical unit lowers from inside the upper cabinet. The 20 Amp rated duplex receptacle, has integrated GFCI protection, has tamper resistant (TR) plugs, and is also weather resistant. The unit also contains two separate USB charging ports (1 Type A & 1 Type C)), both 30W.

The solid stainless steel cover holds up to heavy traffic and beautifully accents stainless appliances. Installation is a breeze and only requires a single round hole to be cut into the bottom of the upper cabinet. No other tools are required. All units come with a prewired 2 foot soft wire whip for making the hardwired connection to the supply side simple and fast.

Additional Images

Specifications

• Color: Stainless Steel Cover only
• Black outlet: 20 Amp GFCI
• Tamper resistant (TR) plugs
• Weather resistant (WR) outlet
• 2 Separate USB Charging Ports (1 Type A & 1 Type C): both 30W
• USB Port Protocol: Type A: QC 3.0; Type C: PD
• Waterproof gasket under bezel *Consult with electrician and inspector before ordering
• Cover Diameter: 4″ round
• Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
• Pop down length: 7.13″
• In cabinet depth when closed: 15.5″
• Includes 2 foot soft wire whip
• Install using a licensed electrician
• Designed for indoor installations only
• Includes matching trim ring
• 2 year warranty

Drawings and Resources

Certifications and Compliances

• ETL Certification Sheet – PDF
• ETL listed for USA installations, # 4004534
• cETL listed for Canada installation, # 4004534
• CSA approved for Canada, #C22.2
• Conforms to UL standard 498 and 943 (GFI options)
• UL listed receptacle, # E473428
• ROHS and Proposition 65 Compliant
