1103-58-A

1103-58-A

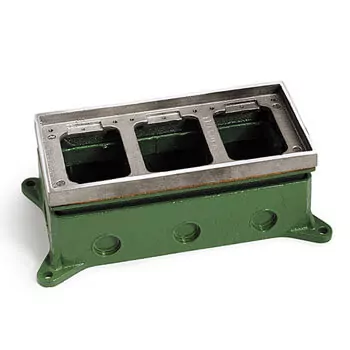

Deep, three gang cast box (partitioned), fully adjustable The Lew Electric 1103-58-A is a cast iron concrete floor box with a three gang aluminum top. The box is fully adjustable and offers 3/8″ of adjustability after it is installed via 4 screws




  • Share this product:
  •
  •
  • Product Description

    Deep, three gang cast box (partitioned), fully adjustable

    The Lew Electric 1103-58-A is a cast iron concrete floor box with a three gang aluminum top. The box is fully adjustable and offers 3/8″ of adjustability after it is installed via 4 screws with just a screwdriver. The box is deep offering 3.32″ of height for installation, and 13 cubic inches of interior space in each gang. There are a total of six 3/4″ knockouts in the box to run your wires to. The box ships with a protective cement cover to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately. If the box is to be used in a carpeted area a sold separately carpet flange can be ordered, the CF-1100 series carpet flange adds 3/8″ of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile. To further make installation as easy as possible, screws are provided to mount the cover assembly to the box. The box is UL listed for the USA, and cUL listed for Canada installations.

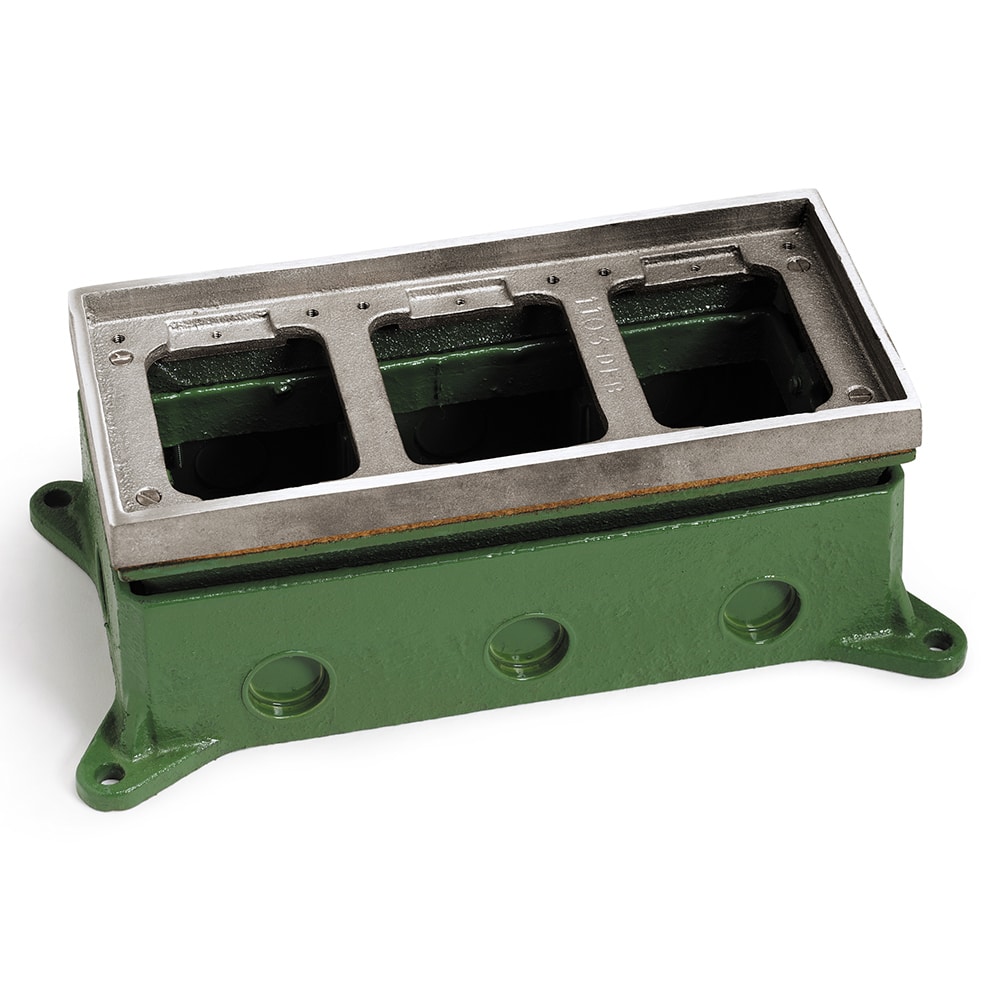

    Additional Images

    Specifications

    Dim: H: 3 3/4″ / L: 9 1/4″ / W: 4 5/16″
    Adjust after: 3/8″ / Interior Capacity: 40 cu. in. (MIN) (13 cu. in./GANG
    Openings: Sides (8) 3/4″

    Top: Aluminum
    Requires cover, sold separately
    Size: Three gang
    For concrete installations
    Offers 3/8″ of adjustability post installation
    40 cubic inches of interior space
    Eight 3/4″ knockouts
    UL and cUL listed, # 514A, 489H
    Includes construction cap
    Includes cover screws to secure to box
    Box dimensions:  4.25″ x 8.88″
    Depth:  3.32″ deep
    Can be used with carpet or tile
    Warranty:  1 year

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances
