Product Description

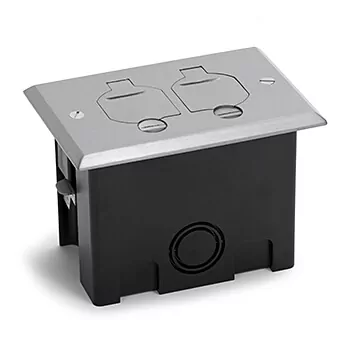

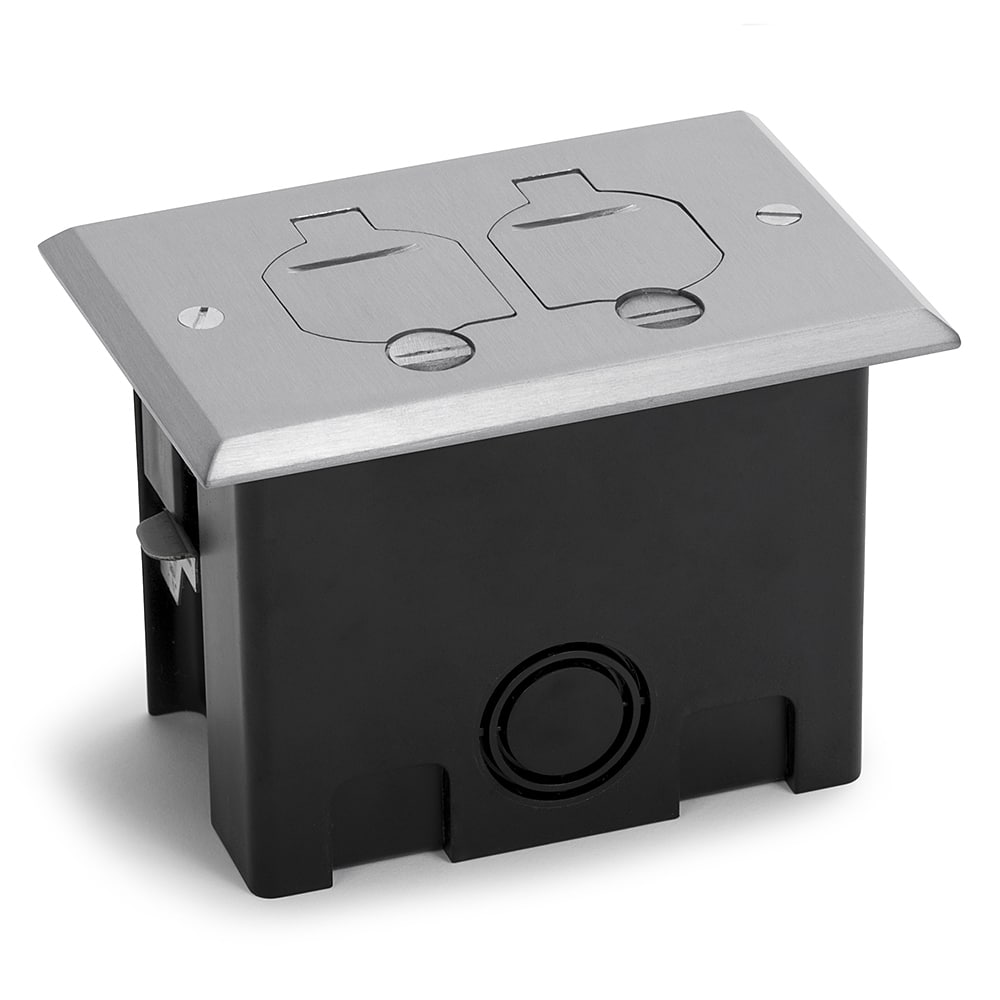

1 Duplex 15A Power Plastic Floor Box with Flip Lids – Aluminum Cover

The Lew Electric PB1-FBA is a plastic floor box with aluminum cover.  Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover features 2 flip lids that provide quick access to your plugs in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.

The compact floor box is affordable, easy to install, and supplies power in any finished floor.

Additional Images

Specifications

Cover: Aluminum, 2 flip lids
Outlets:  One duplex 15A
Size: 1 gang
Tamper resistant plugs
ETL listed for USA
cETL listed for Canada
ETL listing # 4004534
Conforms to UL514C
Interior capacity:  22.5 cubic inches
Cover dimensions:  5 1/8″ x 3 1/2″
Cutout dimensions:  2 9/16″ x 4 5/16″
Depth:  3 5/8″
Box material: Polymer
For indoor installations only
Wing screws secure box to sub floor
Plate and outlet screws provided
Warranty:  1 year

❒ Lightweight polymer construction
❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)
❒ Available in 1, 2, or 3 gang (2 & 3 gang available January 2017)
❒ Economical savings over cast iron & stamped metal floor box assemblies
❒ Ease of installation
❒ Adjustable wing clamps for added installation support

❒ Conforms to UL514C
❒ ETL listing #4004534
