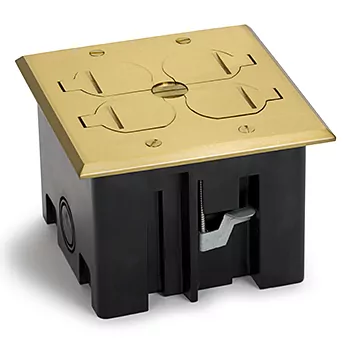

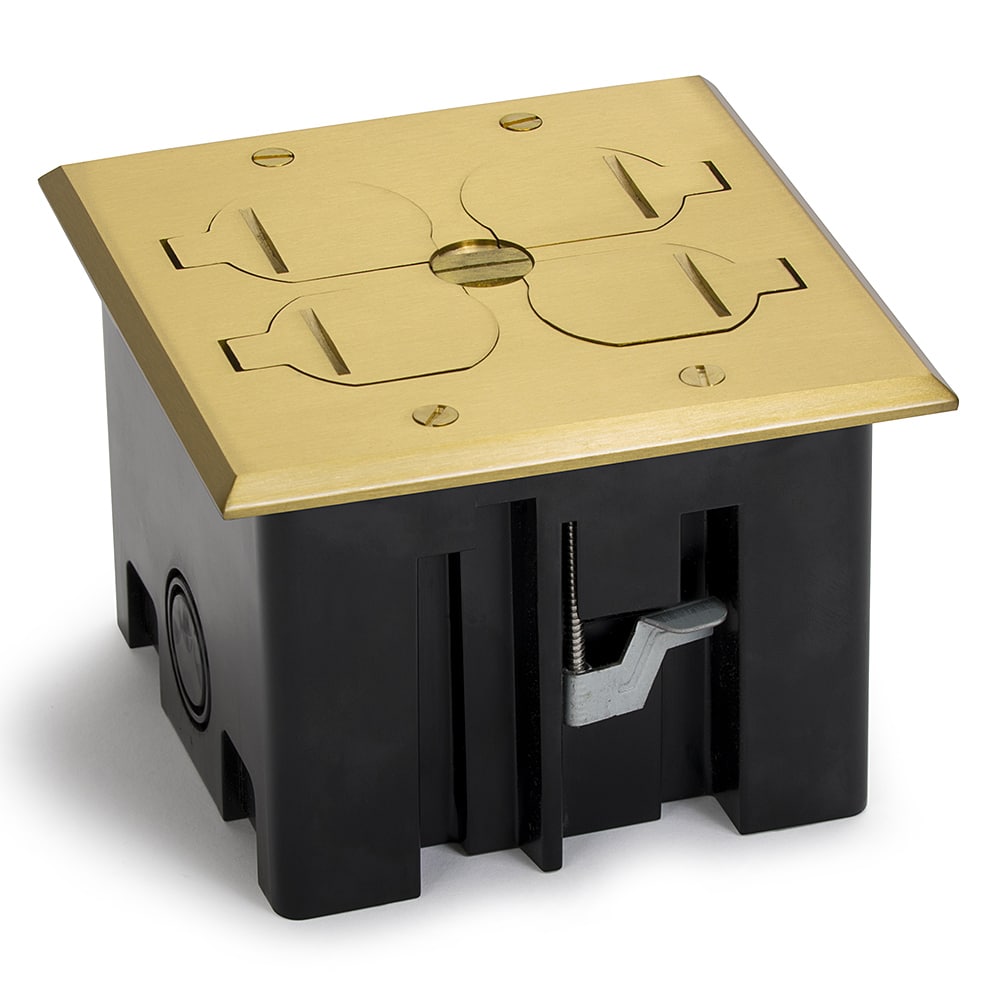

2 Duplex 15A Power Plastic Floor Box with Flip Lids – Brass Cover The Lew Electric PB2-FPB is a plastic floor box with brass cover.  Inside the box you will find two 15 amp duplex power receptacles with tamper proof plugs. The cover features 4 fli




  • Share this product:
  •
  •
  • Product Description

    2 Duplex 15A Power Plastic Floor Box with Flip Lids – Brass Cover

    The Lew Electric PB2-FPB is a plastic floor box with brass cover.  Inside the box you will find two 15 amp duplex power receptacles with tamper proof plugs. The cover features 4 flip lids that provide quick access to your plugs in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.

    The compact floor box is affordable, easy to install, and supplies power in any finished floor.

    Additional Images

    Specifications

    Cover: Brass, 4 flip lids
    Outlets:  Two duplex 15A
    Size:  2 gang
    Tamper resistant plugs
    ETL listed for USA
    cETL listed for Canada
    ETL listing # 4004534
    Conforms to UL514C
    Interior capacity:  45 cubic inches
    Cover dimensions:  5″ x 5″
    Cutout dimensions:  4 5/16″ x 4 5/16″
    Depth:  3 5/8″
    Box material: Polymer
    For indoor installations only
    Wing screws secure box to sub floor
    Plate and outlet screws provided
    Warranty:  1 year

    DIMENSIONS INTERIOR CAPACITY
    L W H  45 Cu. In.
    5″

    5″

     3 5/8

    FEATURES & BENEFITS

    Lightweight polymer construction

    ❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)

    Economical savings over cast iron & stamped metal floor box assemblies

    Ease of installation

    Adjustable wing clamps for added installation support



    Intertek_ETL_Listed_C_US❒ Conforms to UL514C

    ❒ ETL listing #4004534

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download
