PUFP-SQ-DB-GFI

PUFP-SQ-DB-GFI

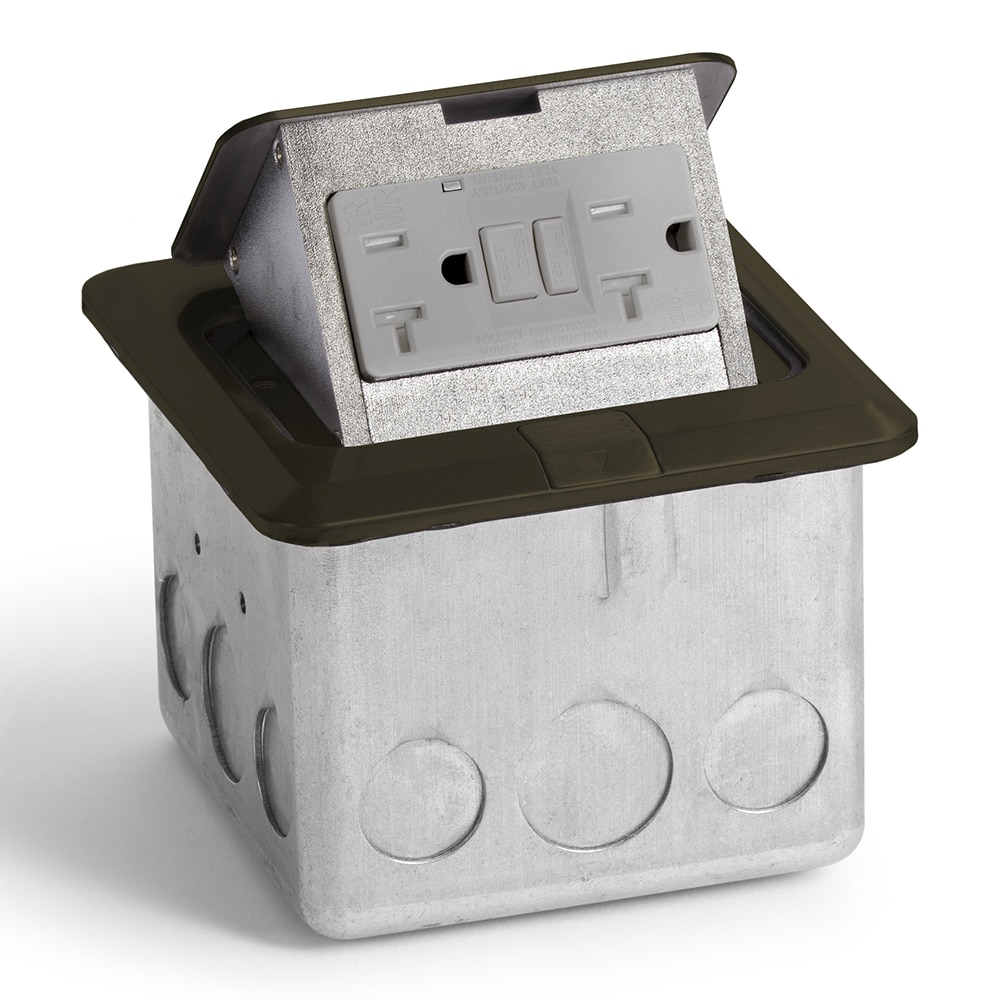

Pop Up floor plate assembly with 20A (TR) Self-Testing GFI Receptacle – Dark Bronze



Type: Product
Category: PUFP Square Floor Boxes, Residential

  • Share this product:
  •
  •
  • Product Description

    Pop Up floor plate assembly with 20A (TR) Self-Testing GFI Receptacle, Dark Bronze

    Great for residential and commercial floor applications. Can also be used in desktop applications.

    Key Features: Receptacle is hidden when not in use. Scrub watertight construction.


    The Lew Electric PUFP-SQ-DB-GFI is a pop up floor box designed to be hidden in the floor where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The outlet is 20 Amp rated, integrated GFCI protection, and has tamper resistant (TR) plugs.

    The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.

    Additional Images

    Specifications

    • 20A GFCI
    • Dark Bronze metal top
    • IP44 Splash proof rated
    • Tamper resistant outlets
    • Hardwired power
    • Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
    • Includes PUFP-CT-WB box shown in picture
    • Bezel dimensions: 4 3/4″ X 4 3/4″
    • Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
    • PUFP-CT-WB BOX dimensions: 3 1/8″ x 4″



    Intertek_ETL_Listed_C_USConforms to UL STD.514A and 498;
    Certified to CSA STD.C22.2.; No.18.1-04 and
    42-M1984; LEW ELECTRIC FITTINGS CO
    C-ETL-US #4004534

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances

    PUFP-SQ Series Safety and Certifications:

    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL 514A and 498
    • cULus listed receptacle: E473428
    • Water protection: IP44 Spill proof rated top
    • Tamper resistant (TR) plugs
    • Gasket under bezel to keep water out
    • RoHS and Proposition 65 compliant
    • 1 year warranty
