Product Description

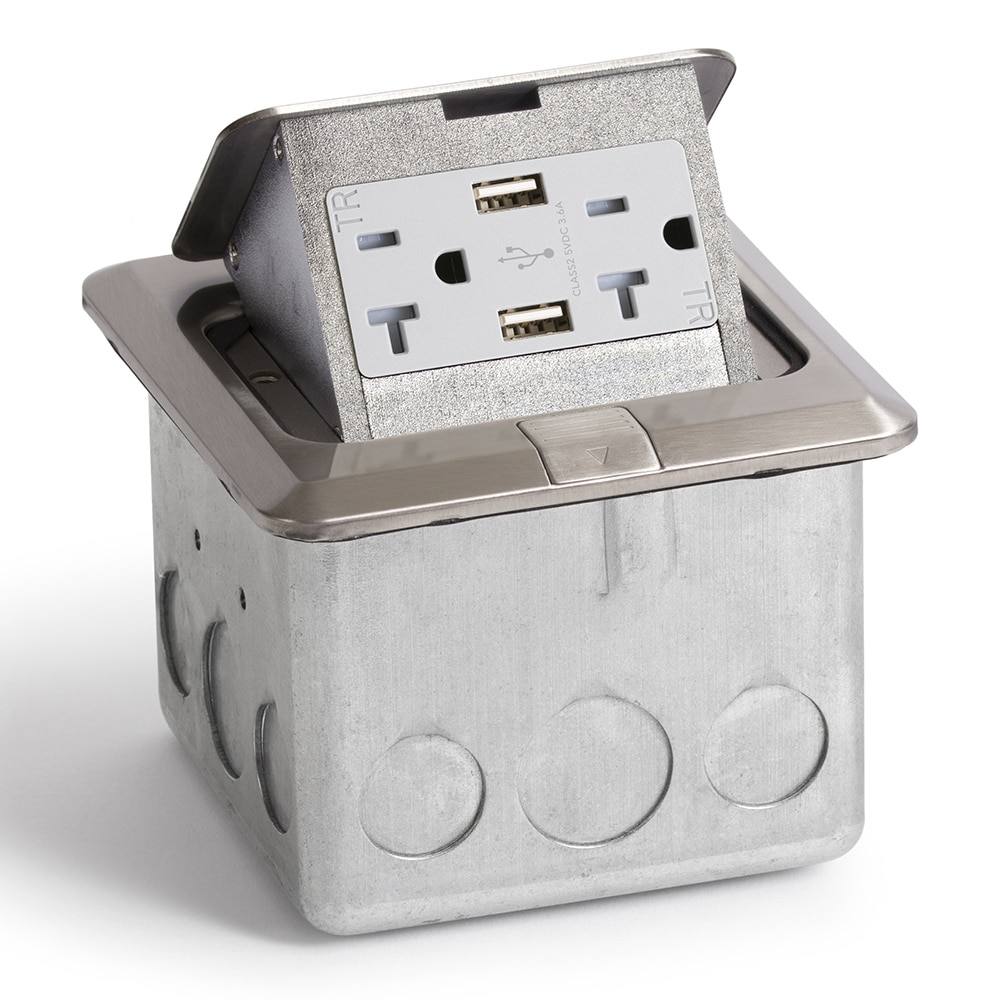

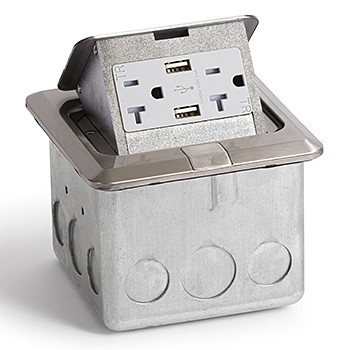

NEW! Pop Up floor plate assembly with 20A (TR) duplex Power/2USB (AC) Receptacle, Stainless Steel

Great for residential and commercial floor applications. Can also be used in desktop applications.


The Lew Electric PUFP-SQ-SS-20A-2USB is a pop up floor box designed to be hidden in the floor where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The outlet is a 20 Amp rated duplex/2USB (AC) with tamper resistant (TR) plugs.

The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.

Additional Images

Specifications

• 20A Duplex Power/2USB (Type A and Type C) Receptacle
• USB Ports are 1 Type A (Class 2 QC3.0) AND 1 Type C (Class 2 PD2.0+QC3.0)
• Stainless Steel metal top
• IP44 Splash proof rated
• Tamper resistant outlets
• Hardwired power
• Waterproof gasket under bezel  *Consult with electrician and inspector before ordering
• Includes PUFP-CT-WB box shown in picture
• Bezel dimensions: 4 3/4″ X 4 3/4″
• Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
• PUFP-CT-WB BOX dimensions: 3 1/8″ x 4″

Conforms to UL STD.514A and 498;
Certified to CSA STD.C22.2.; No.18.1-04 and
42-M1984; LEW ELECTRIC FITTINGS CO
C-ETL-US #4004534

Drawings and Resources

Certifications and Compliances

PUFP-SQ Series Safety and Certifications:

• ETL listed for USA installations, # 4004534
• cETL listed for Canada installation, # 4004534
• CSA approved for Canada, #C22.2
• Conforms to UL 514A and 498
• cULus listed receptacle: E491706
• Water protection: IP44 Spill proof rated top
• Tamper resistant (TR) plugs
• Gasket under bezel to keep water out
• RoHS and Proposition 65 compliant
• 1 year warranty
