Product Description

Wireless Charging Kitchen Counter Pop Up With 15A (TR) duplex, 2 USB (Type A&C) receptacle

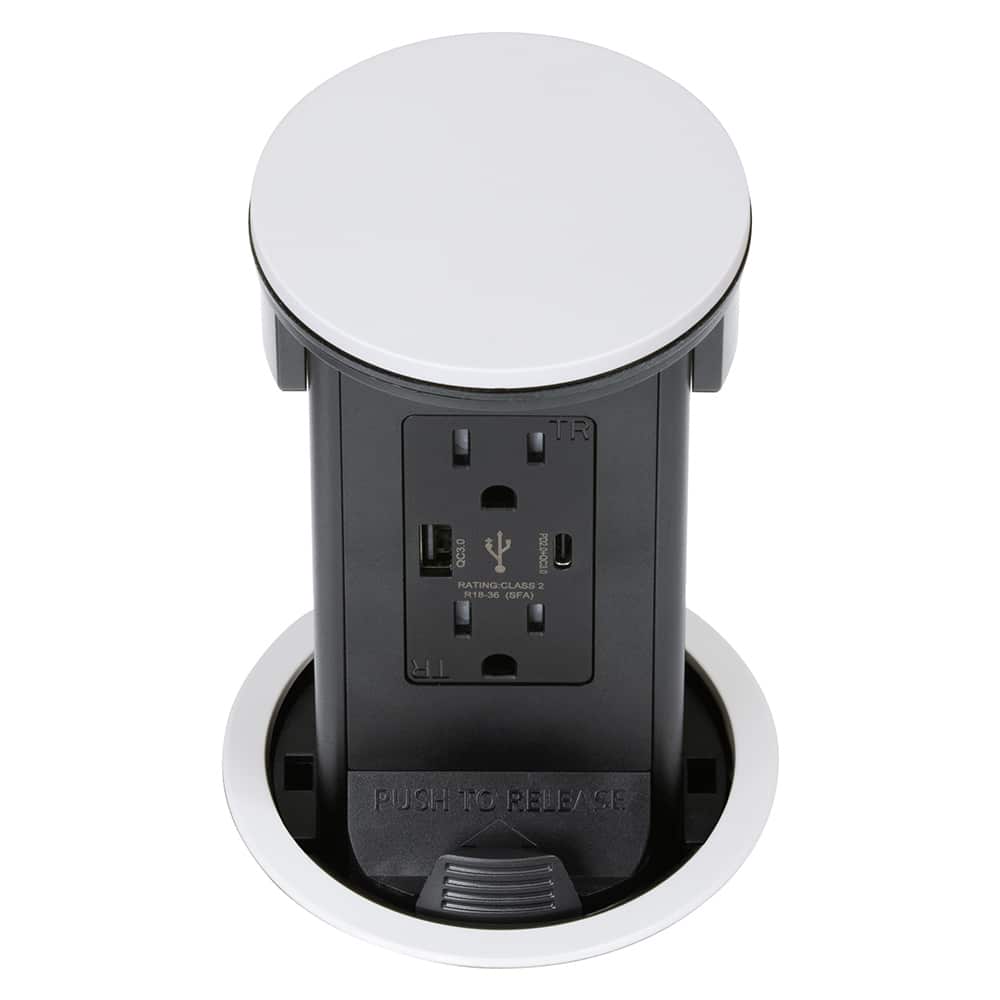

The Lew Electric PUR15ACQD-RWT [White Resin Cover] wireless charging countertop pop up power assembly is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the components are hidden under the counter.

When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The receptacle is a 15 Amp rated duplex/2USB (A&C), and has tamper resistant (TR) plugs. The USB charging ports (1 Type A & 1 Type C) are 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)].

The PUR is spill proof when in the closed position. The resin or tempered glass cover holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required. All units come with a prewired 5 foot soft wire whip for making the hardwired connection to the supply side simple and fast.

2023 NEC Approved

Additional Images

Specifications

• Color: White Resin Cover
• Wireless Charging Cover: Qi
• Black outlet: 15 Amp duplex/ 2-USB
• USB charging ports: 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)]
• Tamper resistant (TR) plugs
• Waterproof gasket under bezel *Consult with electrician and inspector before ordering
• Cover Diameter: 4″ round
• Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
• Pop up height: 5.17″
• Under counter depth when closed: 13.5″
• Works in counter thickness: 3/8″ – 2 3/16″
• Includes 5 foot soft wire whip
• Install using a licensed electrician
• Designed for indoor installations only
• Includes matching trim ring
• 2 year warranty

Drawings and Resources

Certifications and Compliances

• ETL Certification Sheet – PDF
• ETL listed for USA installations, # 4004534
• cETL listed for Canada installation, # 4004534
• CSA approved for Canada, #C22.2
• Conforms to UL standard 498 and 943 (GFI options)
• UL listed receptacle, # E309821
• ROHS and Proposition 65 Compliant
