PUR20ACD-DB
Lew Electric PUR20ACD-DB with Dark Bronze Metal Cover. 20 Amp Duplex/ 2USB (AC).
Product Description

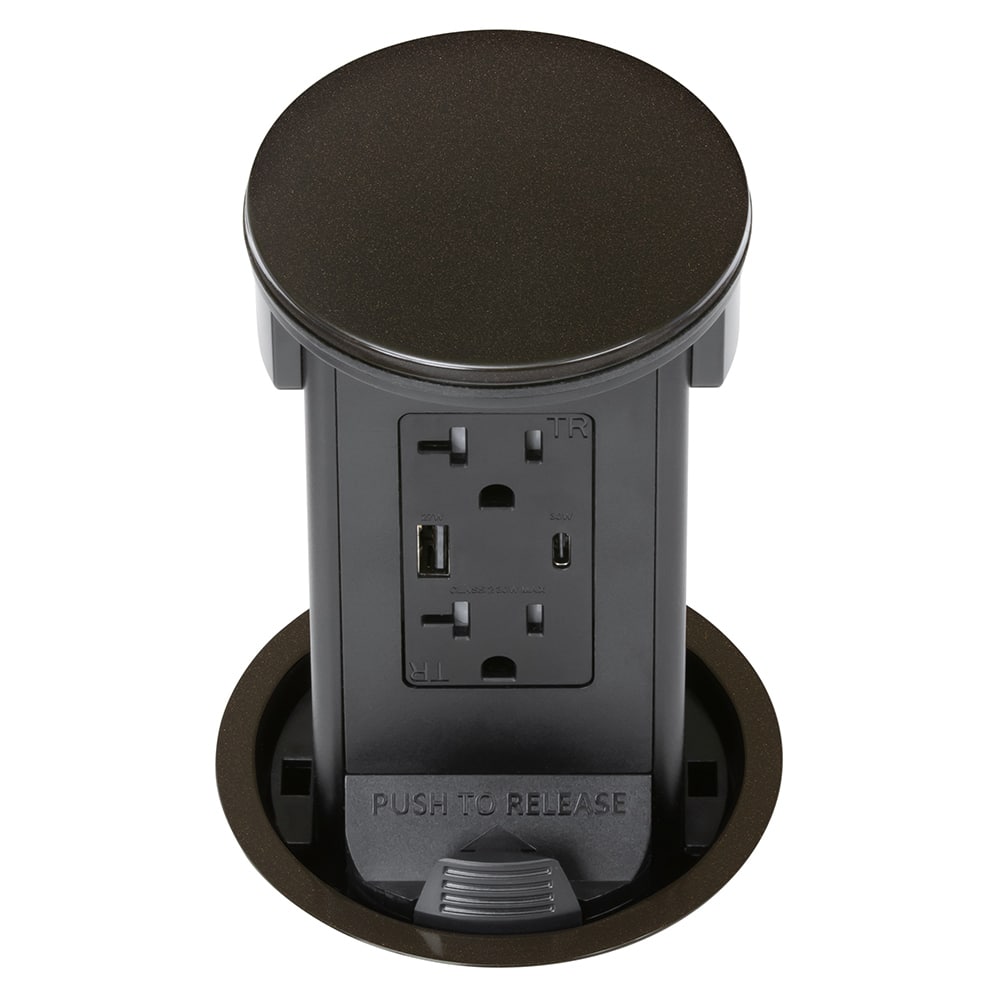

Kitchen Counter Pop Up With 20A (TR) Duplex/ 2USB (AC) Receptacle
The Lew Electric PUR20ACD-DB [Dark Bronze Metal Cover] countertop pop up power assembly is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the components are hidden under the counter.
When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The receptacle is a 20 Amp rated duplex/2USB (A&C), and has tamper resistant (TR) plugs. The USB charging ports (1 Type A & 1 Type C) are 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)].
The PUR is spill proof when in the closed position. The metal cover holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required. All units come with a prewired 5 foot soft wire whip for making the hardwired connection to the supply side simple and fast.
2023 NEC Approved
Additional Images
Specifications
- Color: Dark Bronze Metal Cover
- Black outlet: 20 Amp Duplex/ 2USB (AC)
- USB charging ports: 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)]
- Tamper resistant (TR) plugs
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Cover Diameter: 4″ round
- Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
- Pop up height: 5.17″
- Under counter depth when closed: 13.5″
- Works in counter thickness: 3/8″ – 2 3/16″
- Includes 5 foot soft wire whip
- Install using a licensed electrician
- Designed for indoor installations only
- Includes matching trim ring
- 2 year warranty
Certifications and Compliances
- ETL Certification Sheet – PDF
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL standard 498 and 943 (GFI options)
- UL listed receptacle, # E491706
- ROHS and Proposition 65 Compliant
