Product Description

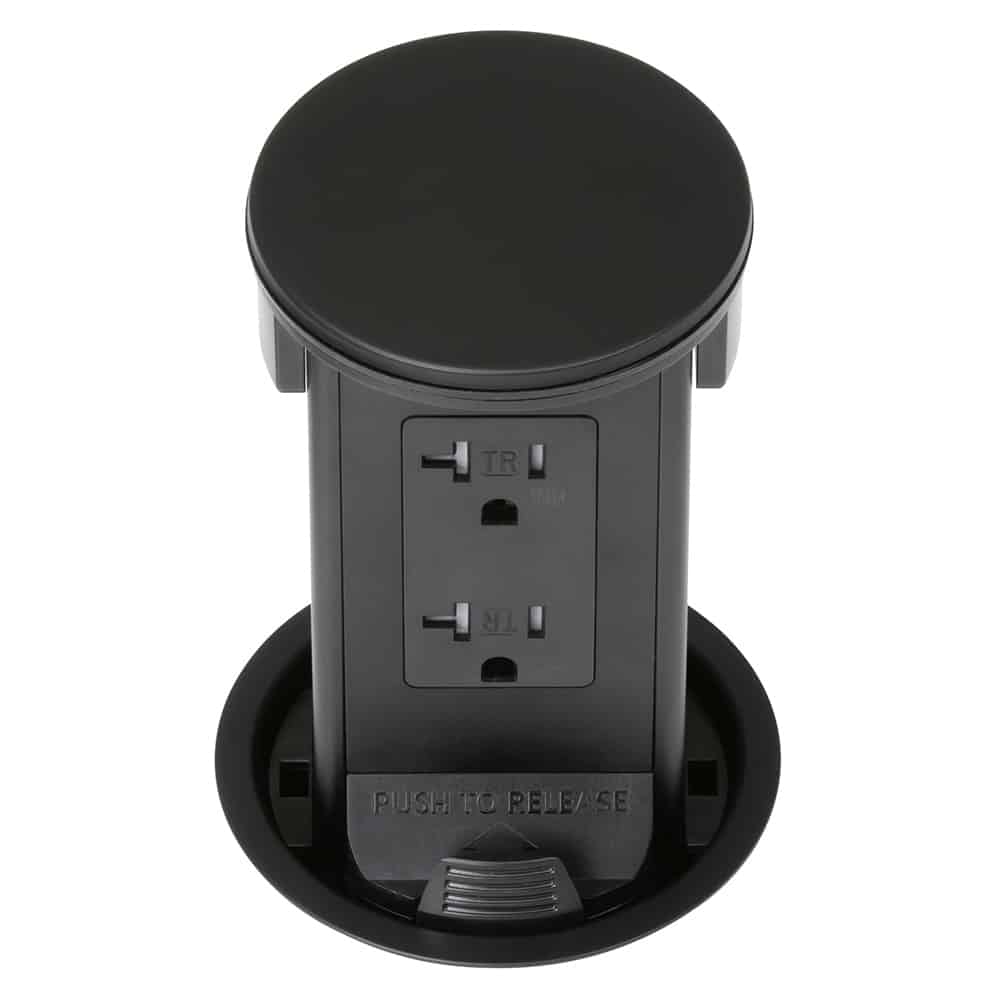

Kitchen Counter Pop Up With 20A (TR) Duplex Decora Receptacle

The Lew Electric PUR20DSD-BK [Matte Black Metal Cover] countertop pop up power assembly is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the components are hidden under the counter.

When power is needed, simply press down on the spring-loaded top and the cylindrical unit raises up. The receptacle is a 20 Amp rated duplex decora style and has tamper resistant (TR) plugs and is weather resistant.

The PUR is spill proof when in the closed position. The metal cover holds up to heavy traffic and beautifully accents a wide color range of stone countertops. Installation is a breeze and only requires a single round hole to be cut into the countertop. No other tools are required. All units come with a prewired 5 foot soft wire whip for making the hardwired connection to the supply side simple and fast.

2023 NEC Approved

Additional Images

Specifications

• Color: Matte Black Metal Cover
• Black outlet: 20 Amp Decora
• Tamper resistant (TR) plugs
• Weather resistant (WR) outlet
• Waterproof gasket under bezel *Consult with electrician and inspector before ordering
• Cover Diameter: 4″ round
• Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
• Pop up height: 5.17″
• Under counter depth when closed: 13.5″
• Works in counter thickness: 3/8″ – 2 3/16″
• Includes 5 foot soft wire whip
• Install using a licensed electrician
• Designed for indoor installations only
• Includes matching trim ring
• 2 year warranty

Drawings and Resources

Certifications and Compliances

• ETL Certification Sheet – PDF
• ETL listed for USA installations, # 4004534
• cETL listed for Canada installation, # 4004534
• CSA approved for Canada, #C22.2
• Conforms to UL standard 498 and 943 (GFI options)
• UL listed receptacle, # E229322
• ROHS and Proposition 65 Compliant
