Product Description

Recessed Floor Plate without box, One RRP-2-QP Comm./Data receptacle, 2 Screw Plugs, Dark Bronze

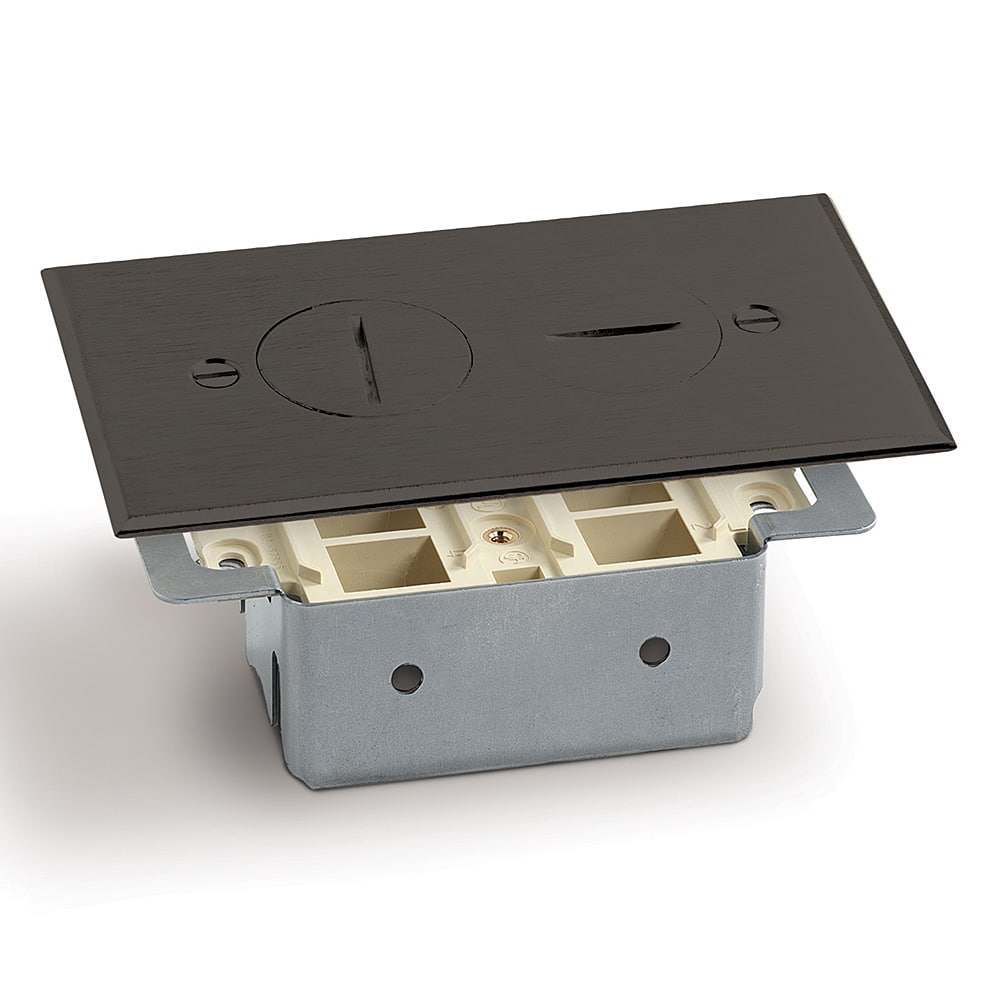

The Lew Electric RRP-2-DB-T is a recessed floor plate with dark bronze screw plug cover and a Lew RRP-2-QP quad port Comm./Data receptacle. The unit also includes an adjustable sleeve that adjusts up to 3/4 inch to accommodate any floor. The cover features two water tight close up screw plugs and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate.

Replacement cover: RRP-2-DBR
Replacement plug: 6212-DB (Dark Bronze)

Additional Images

Specifications

• Plate: 1/8″ Dark Bronze
• Outlet: RRP-2-PQ quad port for Comm./Data connectors
• 2 watertight screw plugs
• Adjustable up to 3/4″
• Includes 1/16″ neoprene rubber gasket
• Cover size: 4 5/8″ x 2 7/8″
• Cutout size: Can’t exceed 2 1/8″ x 3 1/2″
• Capacity: 18 cubic inches
• Warranty: 1 year

UL & NEMA RECOGNITION

• Meets NEMA WD1-1983 heavy duty requirement for display receptacle

FEATURES & BENEFITS

• Versatile power or communications applications
• Water tight assembly
• Adjustable up to 3/4″ to accommodate any floor
