SWB-4-DB

SWB-4-DB

Recessed Floor Plate with Box, Two 15A-TR-Duplex Receptacles, 4 Screw Plugs – Dark Bronze



Type: Product
Category: Residential, SWB Boxes

  • Share this product:
  •
  •
  • Product Description

    Recessed Floor Plate with Box, Two 15A-TR-Duplex Receptacles, 4 Screw Plugs, Dark Bronze

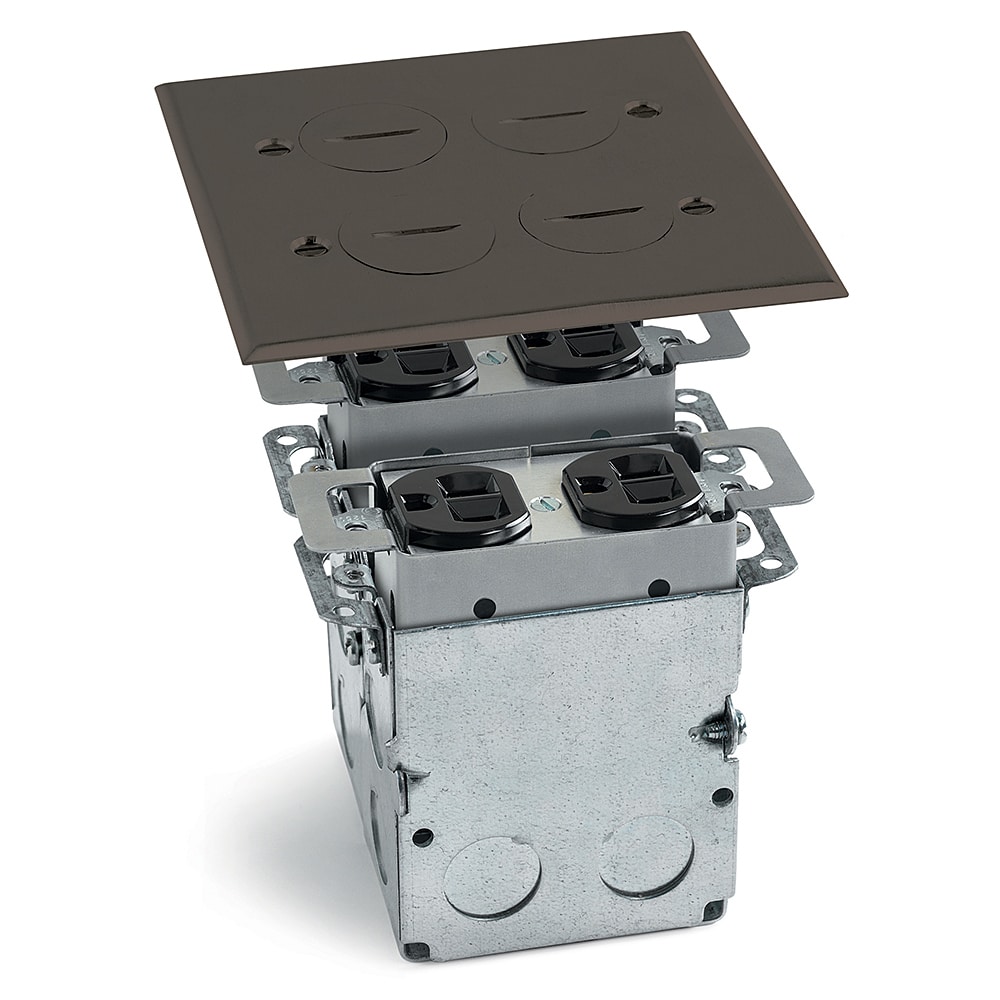

    The Lew Electric SWB-4-DB is a recessed floor plate with dark bronze screw plug cover, two single gang stamped steel boxes and adjusting sleeves. Inside the floor box are two UL listed 15A-TR-Duplex Receptacles. The adjusting sleeves are adjustable up to 3/4″ to accommodate any floor. The box features four water tight close up screw plugs and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.

    Replacement cover: RRP-4-DBP
    Replacement Plug: 6212-DB (Dark Bronze)

    Additional Images

    Specifications

    • Plate: 1/8″ Dark Bronze
    • Outlet: Two 15A, TR duplex receptacles and One RRP-2-PQ quad port device
    • 4 watertight screw plugs
    • Adjustable up to 3/4″
    • Includes 1/16″ neoprene rubber gasket
    • Cover size: 5″ x 5″
    • Back box size: Back box size: 4″L x 3″W x 3.5″H
    • Cutout size: Can’t exceed 4 1/8″ x 3 1/2″
    • Capacity: 36 cubic inches
    • Warranty: 1 year

    UL & NEMA RECOGNITION

    • Box UL #E345966
    • Outlet UL # E309821
    • Meets NEMA WD1-1983 heavy duty requirement for display receptacle

    FEATURES & BENEFITS

    • Versatile power or communications applications
    • Water tight assembly
    • 1/2″ Conduit knockouts
    • Adjustable up to 3/4″ to accommodate any floor
    • Includes one RRP-2-PQ quad port for Comm./Data

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions: Download

    Certifications and Compliances
