Product Description

Recessed Floor Plate with Box, Two 15A-TR-Duplex Receptacles, 4 Flip Lids, Brass

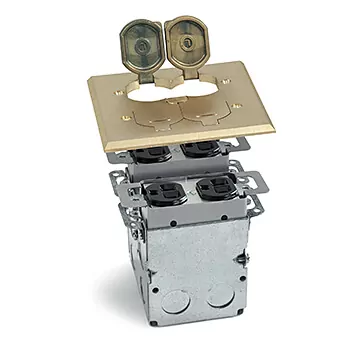

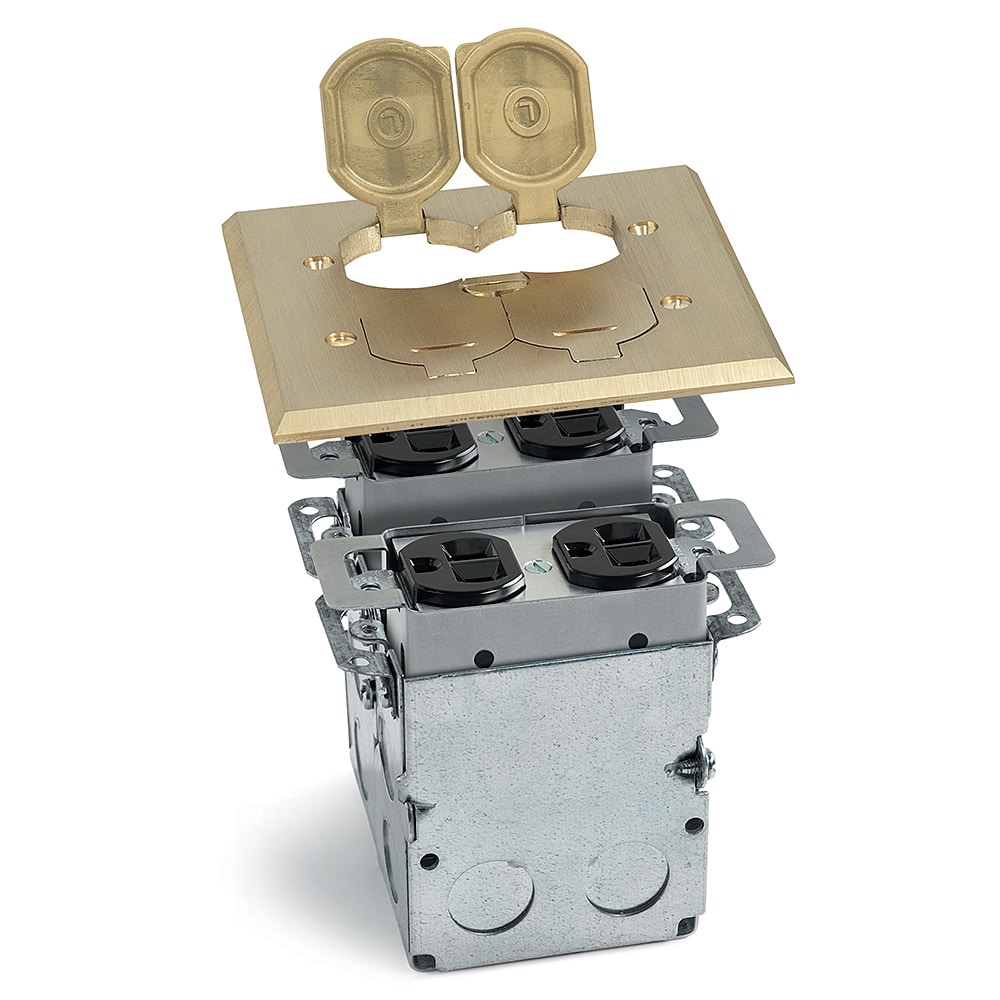

The Lew Electric SWB-4-LR is a recessed floor plate with brass flip lid cover, two single gang stamped steel boxes and adjusting sleeves. Inside the floor box are two UL listed, 15A-TR-Duplex Receptacles. The adjusting sleeves are adjustable up to 3/4″ to accommodate any floor. The box features four water tight flip lids and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.

Additional Images

Specifications

• Plate: 1/4″ Brass
• Outlet: Two 15A, TR duplex receptacles and One RRP-2-PQ quad port device
• 4 watertight flip lids
• Adjustable up to 3/4″
• Includes 1/16″ neoprene rubber gasket
• Cover size: 5″ x 5″
• Back box size: Back box size: 4″L x 3″W x 3.5″H
• Cutout size: Can’t exceed 4 1/8″ x 3 1/2″
• Capacity: 36 cubic inches
• Warranty: 1 year

UL & NEMA RECOGNITION

• Box UL #E345966
• Outlet UL # E309821
• Meets NEMA WD1-1983 heavy duty requirement for display receptacle

FEATURES & BENEFITS

• Versatile power or communications applications
• Water tight assembly
• 1/2″ Conduit knockouts
• Adjustable up to 3/4″ to accommodate any floor
• Includes one RRP-2-PQ quad port for Comm./Data
