UCPDR20ACD-SS

UCPDR20ACD-SS

Lew Electric Under Cabinet Kitchen Pop Down Receptacle With 20A (TR) Duplex/ 2-USB (AC) receptacle, Stainless.




  • Share this product:
  •
  •
  • Product Description

    Under Cabinet Kitchen Pop Down Receptacle With 20A (TR) Duplex/ 2-USB (AC) receptacle, Stainless

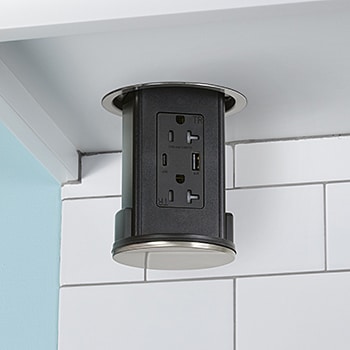

    The Lew Electric UCPDR20ACD-SS under cabinet pop down power assembly is designed to be hidden inside a cabinet where it is not possible or convenient to have a wall outlet. When in the closed position the components are hidden inside the cabinet.

    When power is needed, simply press down on the spring-loaded top and the cylindrical unit lowers from inside the upper cabinet. The receptacle is a 20 Amp rated duplex/2USB (A&C), and has tamper resistant (TR) plugs. The USB charging ports (1 Type A & 1 Type C) are 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)].

    The solid stainless steel cover holds up to heavy traffic and beautifully accents stainless appliances. Installation is a breeze and only requires a single round hole to be cut into the bottom of the upper cabinet. No other tools are required. All units come with a prewired 2 foot soft wire whip for making the hardwired connection to the supply side simple and fast.

    Additional Images

    Specifications

    • Color: Stainless Steel Cover only
    • Black outlet: 20 Amp duplex/ 2-USB (AC)
    • USB charging ports: 27W max (A) & 30W max (C) when charging individually, or total 27W max when charging simultaneously [12W max (A) & 15W max (C)]
    • Tamper resistant (TR) plugs
    • Waterproof gasket under bezel *Consult with electrician and inspector before ordering
    • Cover Diameter: 4″ round
    • Cutout size: 3 3/4″ round, ***It is recommended to have the product in hand before cutting***
    • Pop down length: 5.17″
    • In cabinet depth when closed: 13.5″
    • Includes 2 foot soft wire whip
    • Install using a licensed electrician
    • Designed for indoor installations only
    • Includes matching trim ring
    • 2 year warranty

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions:

    Certifications and Compliances

    • ETL Certification Sheet – PDF
    • ETL listed for USA installations, # 4004534
    • cETL listed for Canada installation, # 4004534
    • CSA approved for Canada, #C22.2
    • Conforms to UL standard 498 and 943 (GFI options)
    • UL listed receptacle, # E491706
    • ROHS and Proposition 65 Compliant
