1101-PB

1101-PB

1 Duplex 15A Power Rectangle Plastic Floor Box – No Cover The Lew Electric 1101-PB is a rectangular plastic floor box with no cover (sold separately). Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The box that




  • Share this product:
  •
  •
  • Product Description

    1 Duplex 15A Power Rectangle Plastic Floor Box – No Cover

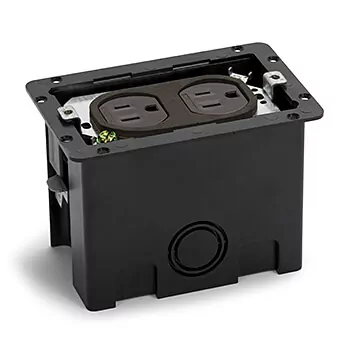

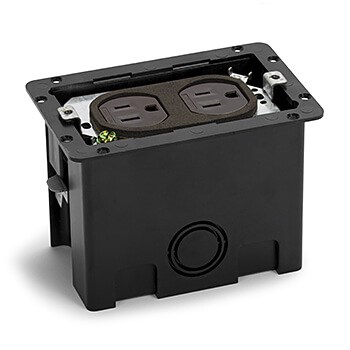

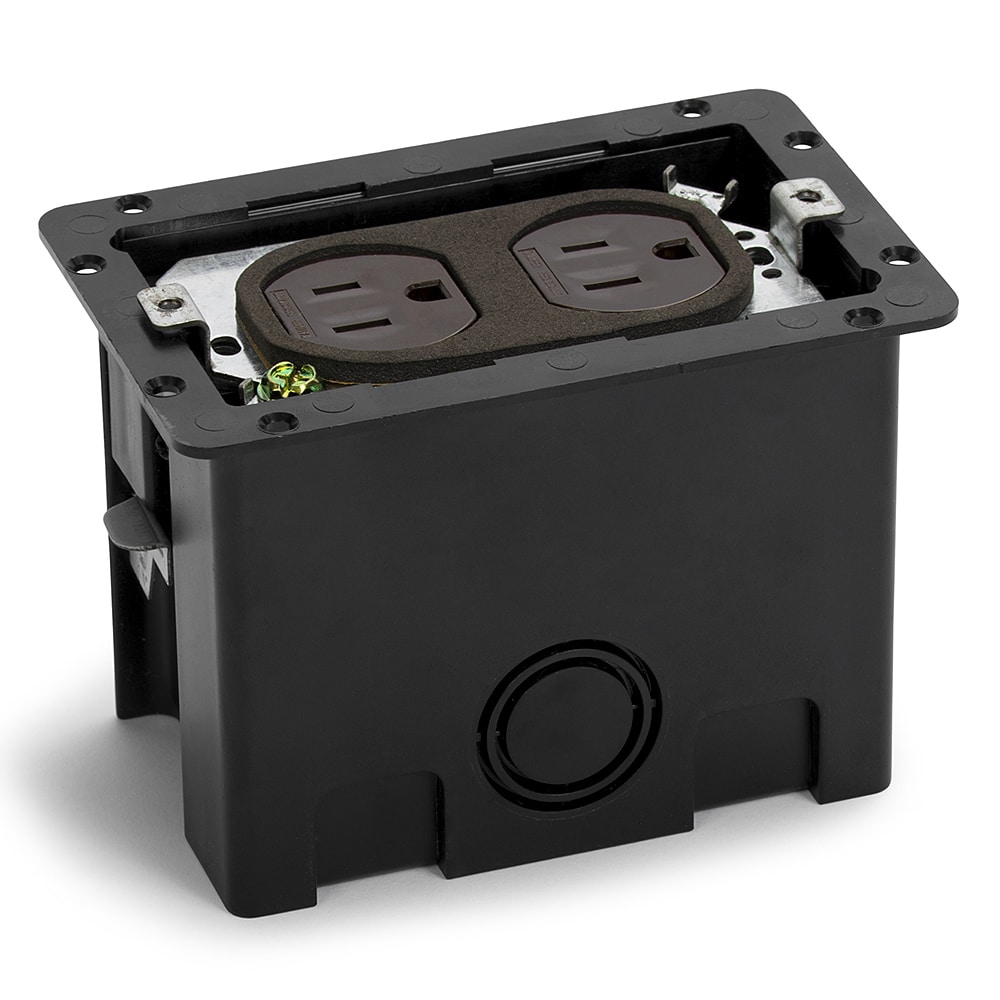

    The Lew Electric 1101-PB is a rectangular plastic floor box with no cover (sold separately). Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The box that houses the receptacle is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 2 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C. The compact floor box is affordable, easy to install, and supplies power in any finished floor.

    *This box does not come with a cover, if you need help choosing one please contact us*

    Additional Images

    Specifications

    Rectangle floor box, cover sold separately
    Outlets:  One duplex 15A
    Tamper resistant plugs
    ETL listed for USA
    cETL listed for Canada
    ETL listing # 4004534
    Conforms to UL514C
    Interior capacity:  22.5 cubic inches
    Cover (when purchased):  5 1/8″ x 3 1/2″
    Cutout dimensions:  2 9/16″ x 4 5/16″
    Depth:  3 5/8″
    Box material: Polymer
    Warranty:  1 year

    DIMENSIONS INTERIOR CAPACITY
    L W H  22.5 Cu. In.
    4 3/4″

    3 1/8″

    3 3/8″



    ❒ Lightweight polymer construction
    ❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)
    ❒ Available in 1, 2, or 3 gang (2 & 3 gang available January 2017)
    ❒ Ease of installation
    ❒ Adjustable wing clamps for added installation support

    Intertek_ETL_Listed_C_US❒ Conforms to UL514C
    ❒ ETL listing #4004534

    Drawings and Resources

    Adobe PDF: Download
    AutoCAD DWG: Download
    Install Instructions:

    Certifications and Compliances
