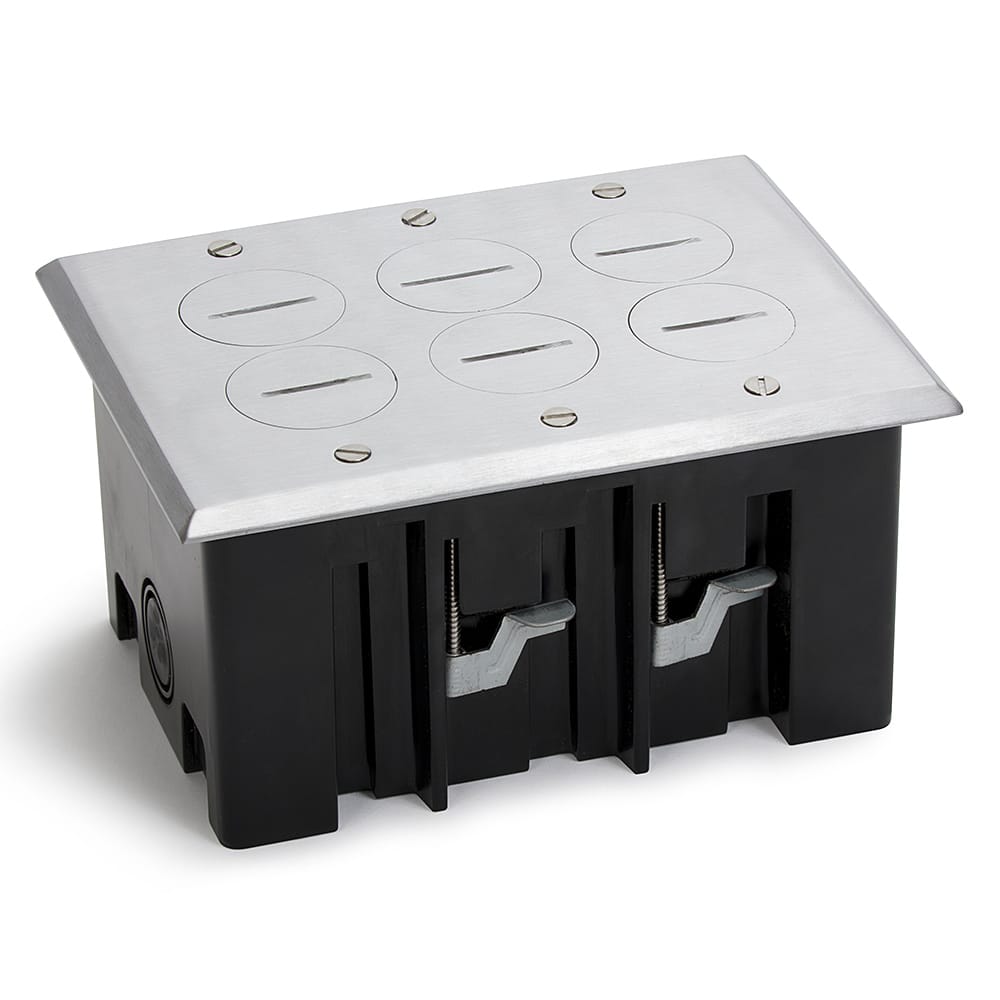

3 Gang Drop In Plastic Floor Box – Brushed Aluminum Cover

The Lew Electric PB3-SPA is a three gang, divided, drop in style plastic floor box with a brushed aluminum screw plug cover. Inside the box are three 15 AMP (TR) duplex receptacles, each attached to a mounting plate with grounding screw and a water tight gasket surrounding the receptacle. A second gasket surrounds the underside of the cover, preventing spills from accessing the receptacles. A Lew RRP-2-PQ quad port Comm./Data device is also included to replace one of the receptacles if warranted. This allows for line voltage and Comm./Data to be utilized in the same box. The box that houses the receptacles is made out of a lightweight polymer construction that offers savings over traditional metal floor boxes. The box is easy to install in finished floor applications and has a total interior capacity of 64 cubic inches. The integrated adjustable wing clamps add additional installation support. There are five ³/₄″ – 1″ combination knockouts in the box for cable entry.  There are also four NM cable slots. The compact floor box is affordable, easy to install, and supplies power in any finished floor.

The PB3-SPA is ETL listed for the USA and Canada installations and conforms to UL Standard #498 CSA # C22.2#18. The compact floor box is affordable, easy to install, and supplies power in any finished floor.

Also included: One RRP-2-PQ quad port

Replacement Cover: RRP-6-SPA

Replacement Plug: 6215-A (Brushed Aluminum)

• ETL file #4004534
• Conforms to UL 498
• Conforms CSA C22.2 #42
• UL listed receptacle #E309821
