PBR1-SPA
1 Duplex 15A Power Round Plastic Floor Box with Plugs – Aluminum Cover The Lew Electric PBR1-SPA is a round plastic floor box with aluminum cover. Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover
Product Description
1 Duplex 15A Power Round Plastic Floor Box with Plugs – Aluminum Cover

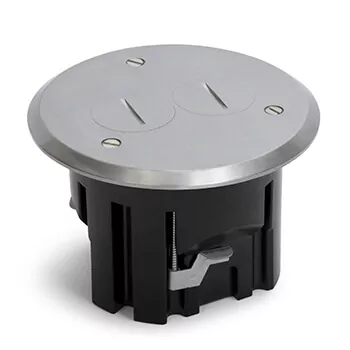

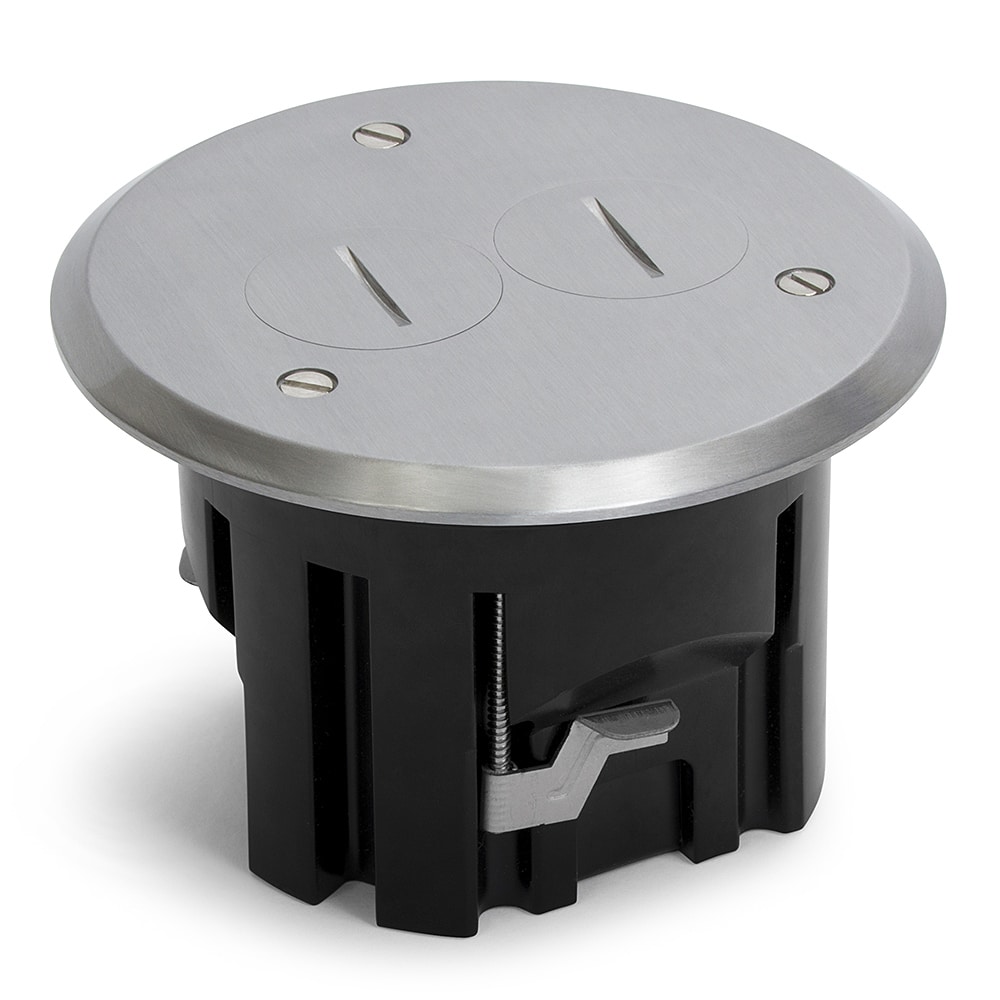

The Lew Electric PBR1-SPA is a round plastic floor box with aluminum cover. Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover features 2 screw plugs that provide quick access to your outlets in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 2 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.
The compact floor box is affordable, easy to install, and supplies power in any finished floor.
Replacement cover: PBR-SPA
Replacement plug: 6215-A (Aluminum)
Additional Images
Specifications
Round cover: Aluminum, 2 screw plugs
Outlets: One duplex 15A
Tamper resistant plugs
ETL listed for USA
cETL listed for Canada
ETL listing # 4004534
Conforms to UL514C
Interior capacity: 20 cubic inches
Cover dimensions: 5 1/16″ round
Cutout dimensions: 3 7/8″ round
Depth: 3 1/4″
Box material: Polymer
Indoor installations only
3 wing clamps secure box to sub floor
Warranty: 1 year
| DIMENSIONS | INTERIOR CAPACITY | |
| A | B | 20 Cu. In. |
| 5 1/16″ |
3 1/4″ |
|
❒ Lightweight polymer construction
❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)
❒ Economical savings over cast iron & stamped metal floor box assemblies
❒ Ease of installation
❒ Adjustable wing clamps for added installation support
❒ Conforms to UL514C
❒ ETL listing #4004534
