PUFP-SQ-DB
Pop Up floor plate assembly with 15A (TR) duplex Power Receptacle – Dark Bronze
Product Description
Pop Up floor plate assembly with 15A (TR) duplex Power Receptacle, Dark Bronze
Great for residential and commercial floor applications. Can also be used in desktop applications.

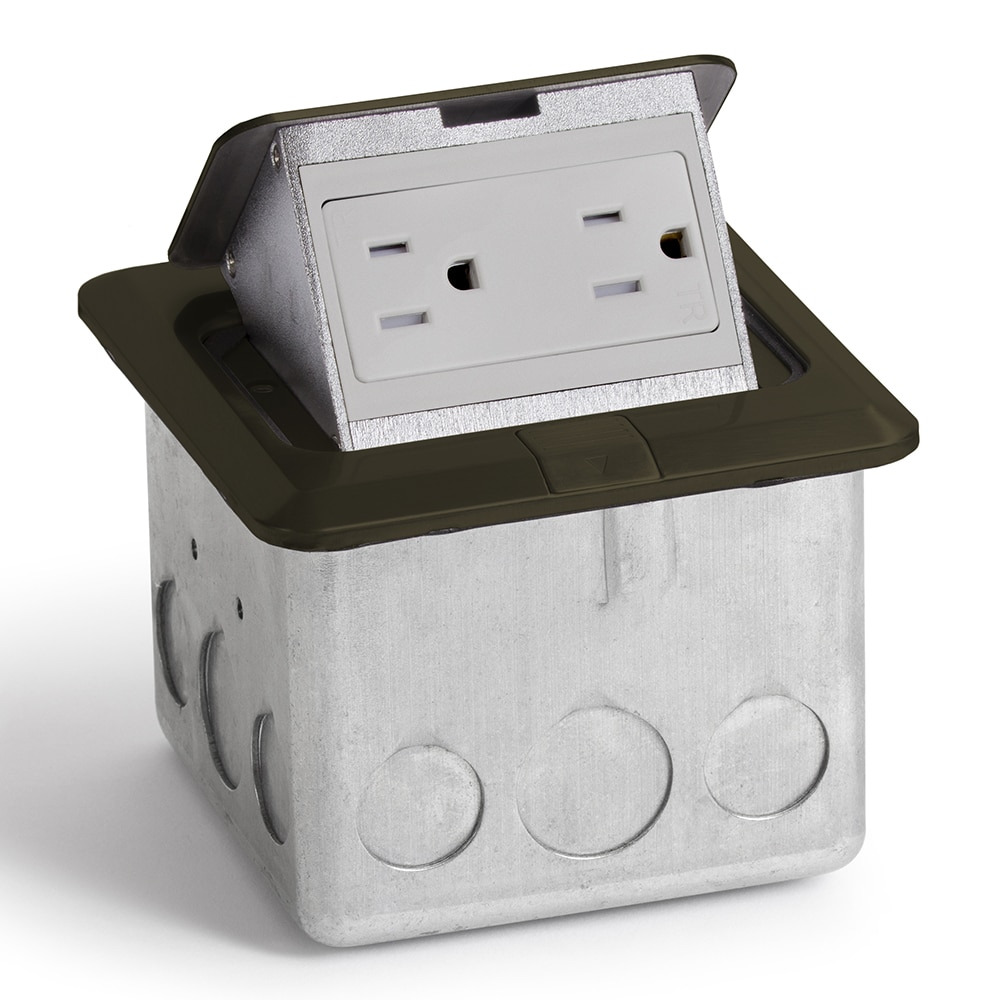

The Lew Electric PUFP-SQ-DB is a pop up floor box designed to be hidden in the floor where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The outlet is a 15 Amp rated duplex with tamper resistant (TR) plugs.
The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.
Additional Images
Specifications
- 15A DECORA
- Dark Bronze metal top
- IP44 Splash proof rated
- Tamper resistant outlets
- Hardwired power
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Includes PUFP-CT-WB box shown in picture
- Bezel dimensions: 4 3/4″ X 4 3/4″
- Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
- PUFP-CT-WB BOX dimensions: 3 1/8″ x 4″
Conforms to UL STD.514A and 498;
Certified to CSA STD.C22.2.; No.18.1-04 and
42-M1984; LEW ELECTRIC FITTINGS CO
C-ETL-US #4004534
Certifications and Compliances
PUFP-SQ Series Safety and Certifications:
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- cULus listed receptacle: E309821
- Water protection: IP44 Spill proof rated top
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 1 year warranty
