Product Description

Recessed Floor Plate with One 15A-TR-Single Receptacle, 1 Screw Plug, Nickel Plated

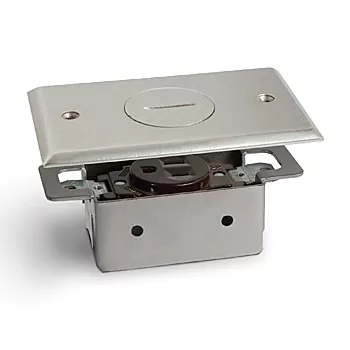

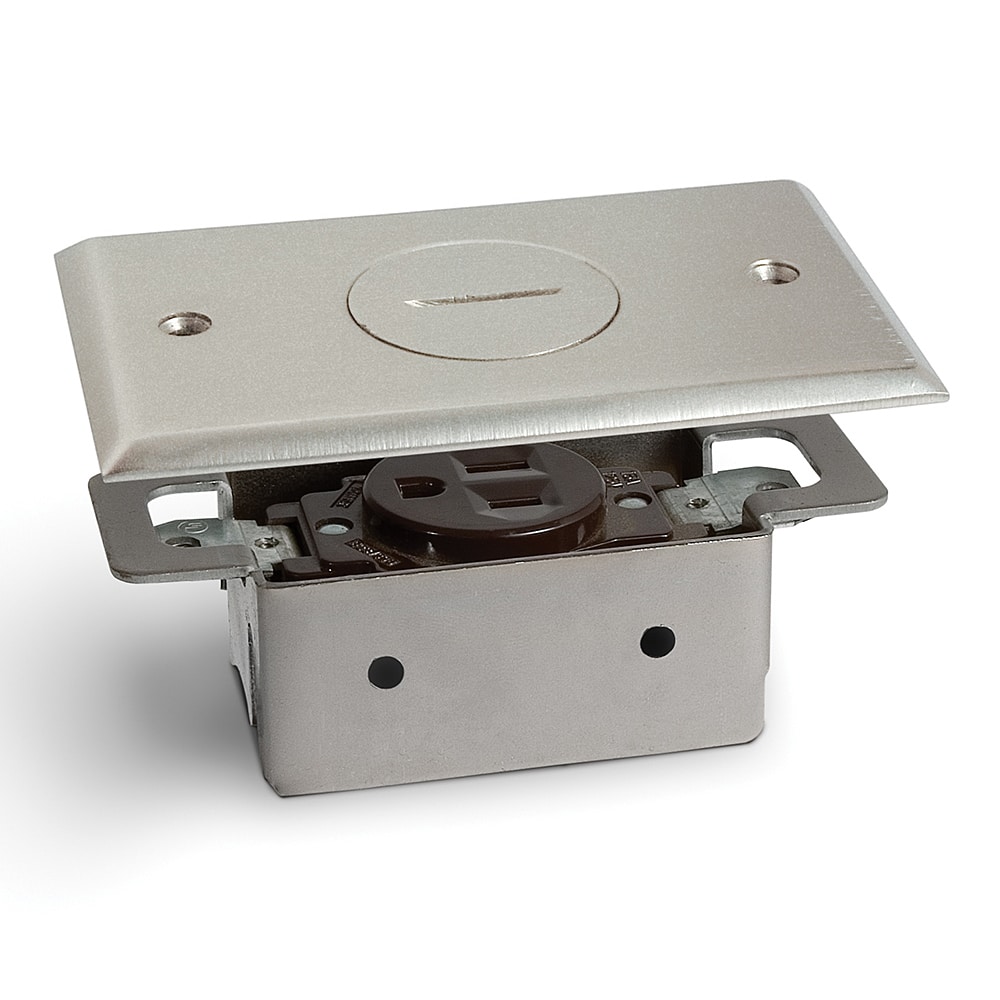

The Lew Electric RRP-1-NP is a recessed floor plate with nickel plated screw plug cover and adjusting sleeve. Inside the adjusting sleeve is a UL listed 15A-TR-Single Receptacle. The adjusting sleeve is adjustable up to 3/4″ to accommodate any floor. The box features a water tight close up screw plug and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate.

Replacement cover: RRP-1-NPR
Replacement plug: 6213-NP (Nickel Plated)

Additional Images

Specifications

• Plate: 1/8″ Nickel Plated metal
• Outlet: 15A, TR single receptacle
• Watertight screw plug
• Adjustable up to 3/4″
• Includes 1/16″ neoprene rubber gasket
• Cover size: 4 5/8″ x 2 7/8″
• Warranty: 1 year

UL & NEMA RECOGNITION

• Outlet UL # E237396
• Meets NEMA WD1-1983 heavy duty requirement for display receptacle

FEATURES & BENEFITS

• Versatile power or communications applications
• Water tight assembly
• 1/2″ Conduit knockouts
• Adjustable up to 3/4″ to accommodate any floor

Drawings and Resources

Certifications and Compliances
