Product Description

Recessed Floor Plate with Box, One 15A-TR-Single Receptacle, 1 Screw Plug, Brass Plated

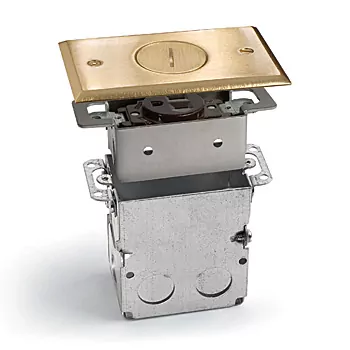

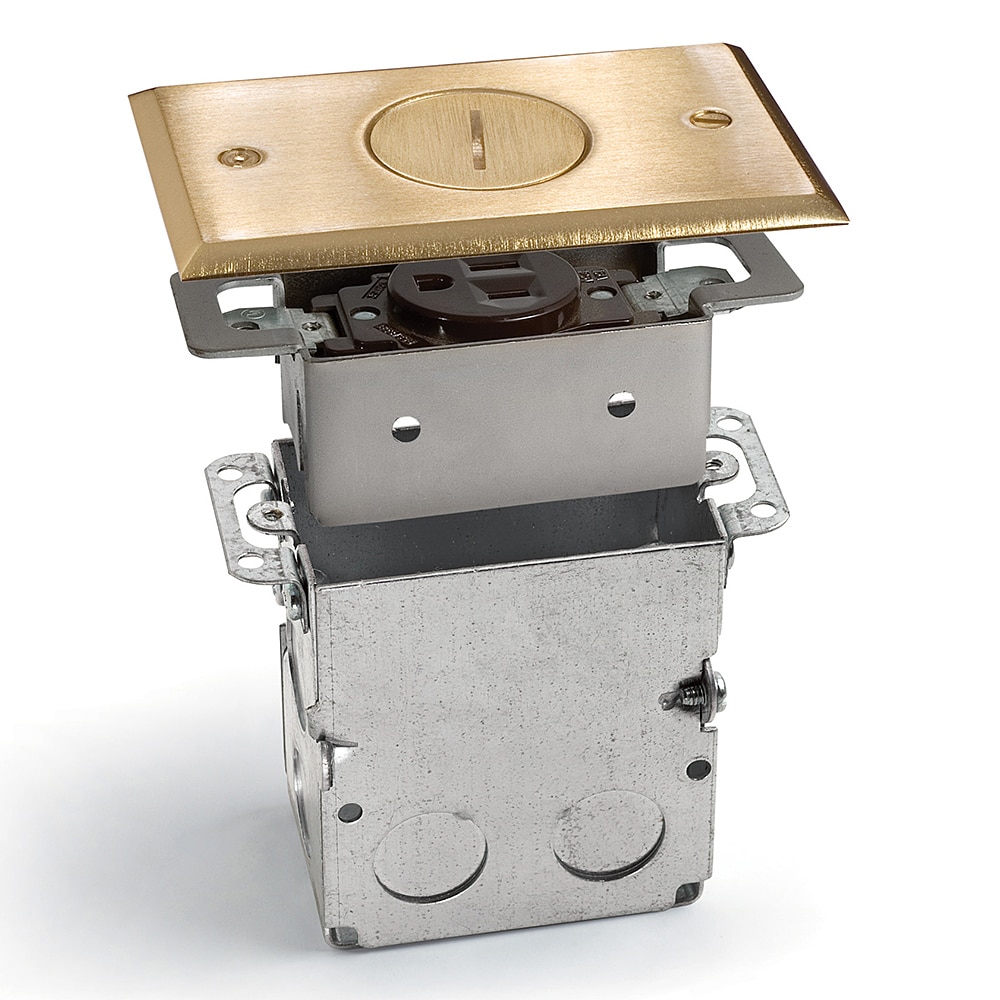

The Lew Electric SWB-1-BP is a recessed floor plate with brass plated screw plug cover, single gang stamped steel box and adjusting sleeve. Inside the floor box is a UL listed 15A-TR-Single Receptacle. The adjusting sleeve is adjustable up to 3/4″ to accommodate any floor. The box features a water tight close up screw plug and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.

Replacement cover: RRP-1-BPR
Replacement plug: 6213-BP (Brass Plated)

Additional Images

Specifications

• Plate: 1/8″ Brass Plated metal
• Outlet: 15A, TR single receptacle
• Watertight screw plug
• Adjustable up to 3/4″
• Includes 1/16″ neoprene rubber gasket
• Cover size: 4 5/8″ x 2 7/8″
• Back box size: 3″L x 2″W x 3.5″H
• Cutout size: Can’t exceed 2 1/8″ x 3 1/2″
• Capacity: 18 cubic inches
• Warranty: 1 year

UL & NEMA RECOGNITION

• Box UL #E345966
• Outlet UL # E237396
• Meets NEMA WD1-1983 heavy duty requirement for display receptacle

FEATURES & BENEFITS

• Versatile power or communications applications
• Water tight assembly
• 1/2″ Conduit knockouts
• Adjustable up to 3/4″ to accommodate any floor
