Product Description

Recessed Floor Plate with Box, One RRP-2-PQ, 2 Screw Plugs, Aluminum

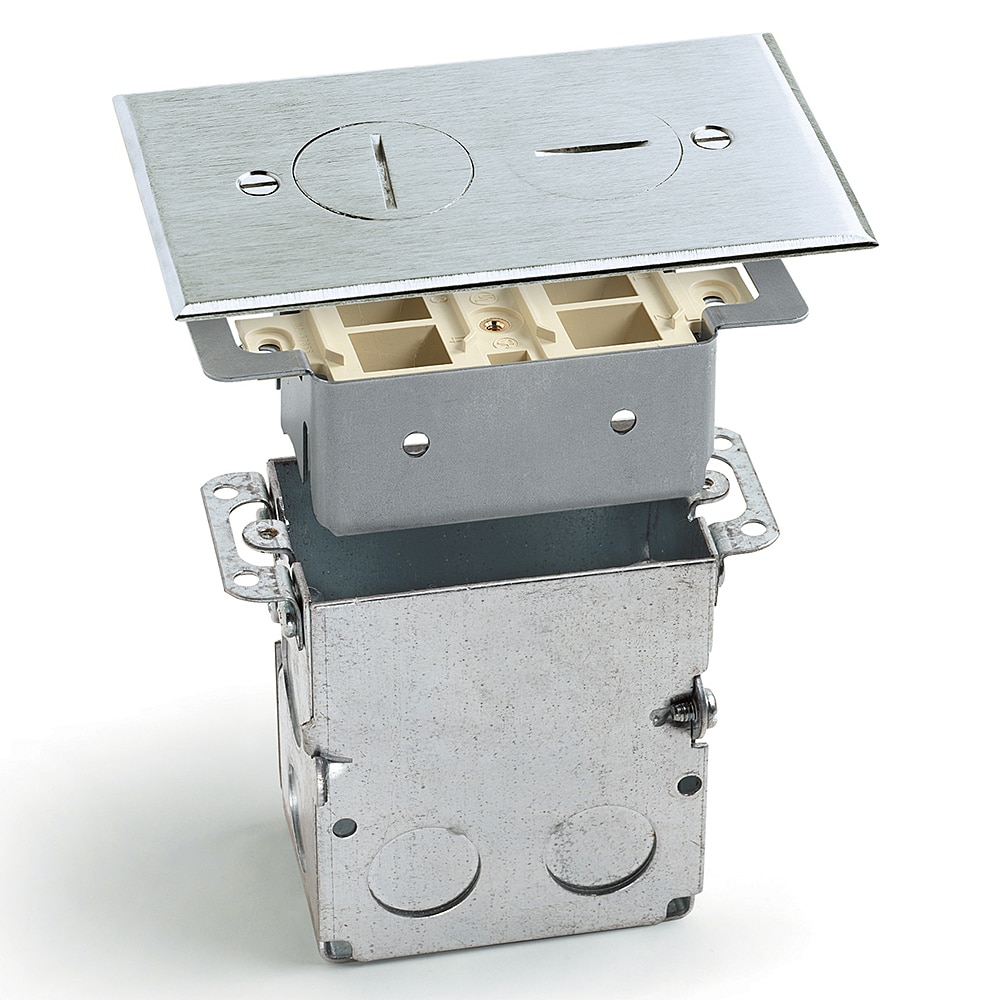

The Lew Electric SWB-2-A-T is a recessed floor plate with aluminum screw plug cover, single gang stamped steel box and adjusting sleeve. Inside the floor box is a Lew RRP-2-PQ quad port Comm./Data receptacle. The adjusting sleeve is adjustable up to 3/4″ to accommodate any floor. The box features two water tight close up screw plugs and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.

Replacement Cover: RRP-2-AR
Replacement Plug: 6212-A (Aluminum)

Additional Images

Specifications

• Plate: 1/8″ Aluminum
• Outlet: RRP-2-PQ quad port for Comm./Data connectors
• 2 watertight screw plugs
• Adjustable up to 3/4″
• Includes 1/16″ neoprene rubber gasket
• Cover size: 4 5/8″ x 2 7/8″
• Back box size: 3″L x 2″W x 3.5″H
• Cutout size: Can’t exceed 2 1/8″ x 3 1/2″
• Capacity: 18 cubic inches
• Warranty: 1 year

UL & NEMA RECOGNITION

• Box UL #E345966
• Meets NEMA WD1-1983 heavy duty requirement for display receptacle

FEATURES & BENEFITS

• Versatile power or communications applications
• Water tight assembly
• 1/2″ Conduit knockouts
• Adjustable up to 3/4″ to accommodate any floor

Drawings and Resources

Certifications and Compliances
