Product Description

Recessed Floor Plate with Box, One 15A-TR-Duplex Receptacle, 2 Flip Lids, Dark Bronze

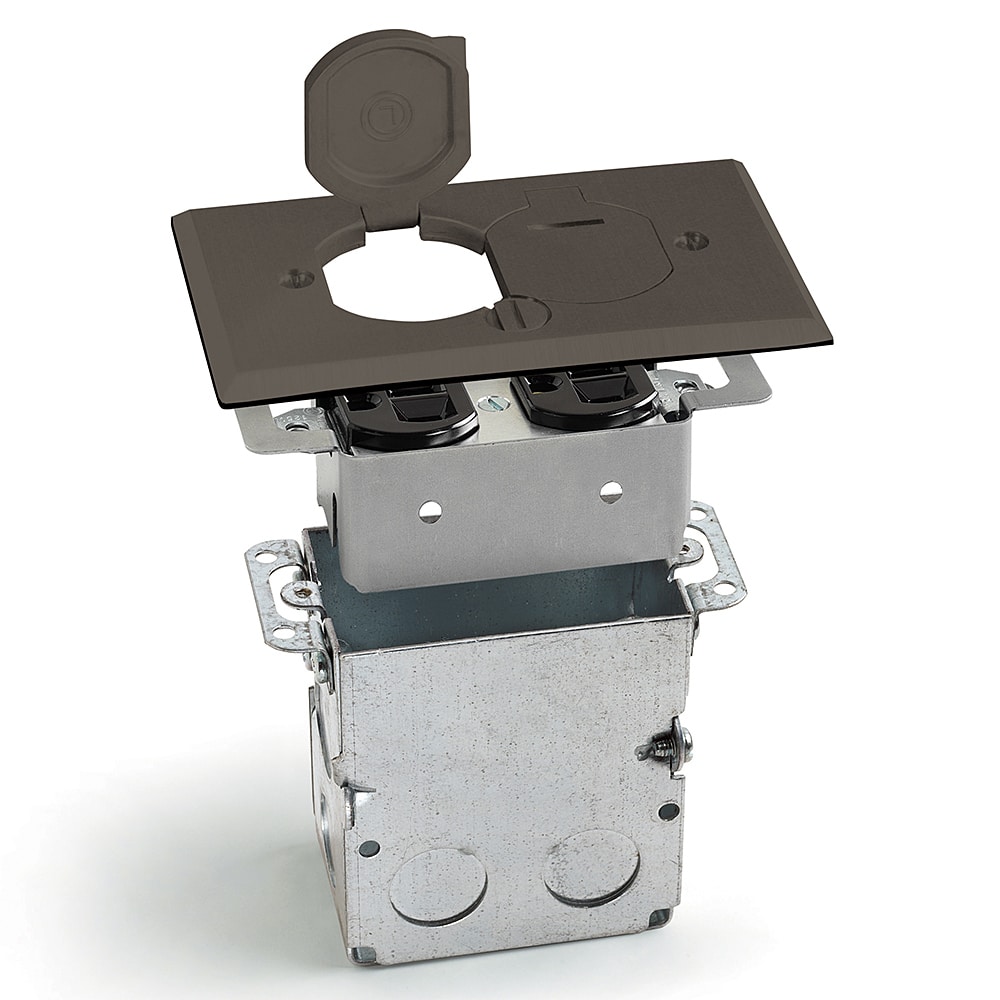

The Lew Electric SWB-2-LR-DB is a recessed floor plate with dark bronze flip lid cover, single gang stamped steel box and adjusting sleeve. Inside the floor box is a UL listed, 15A-TR-Duplex Receptacle. The adjusting sleeve is adjustable up to 3/4″ to accommodate any floor. The box features two water tight flip lids and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.

Replacement cover: RRP-2-DBR

Additional Images

Specifications

• Plate: 1/4″ Dark Bronze
• Outlet: 15A, TR duplex receptacle
• 2 watertight flip lids
• Adjustable up to 3/4″
• Includes 1/16″ neoprene rubber gasket
• Cover size: 4 5/8″ x 2 7/8″
• Back box size: 3″L x 2″W x 3.5″H
• Cutout size: Can’t exceed 2 1/8″ x 3 1/2″
• Capacity: 18 cubic inches
• Warranty: 1 year

UL & NEMA RECOGNITION

• Box UL #E345966
• Outlet UL # E309821
• Meets NEMA WD1-1983 heavy duty requirement for display receptacle

FEATURES & BENEFITS

• Versatile power or communications applications
• Water tight assembly
• 1/2″ Conduit knockouts
• Adjustable up to 3/4″ to accommodate any floor
